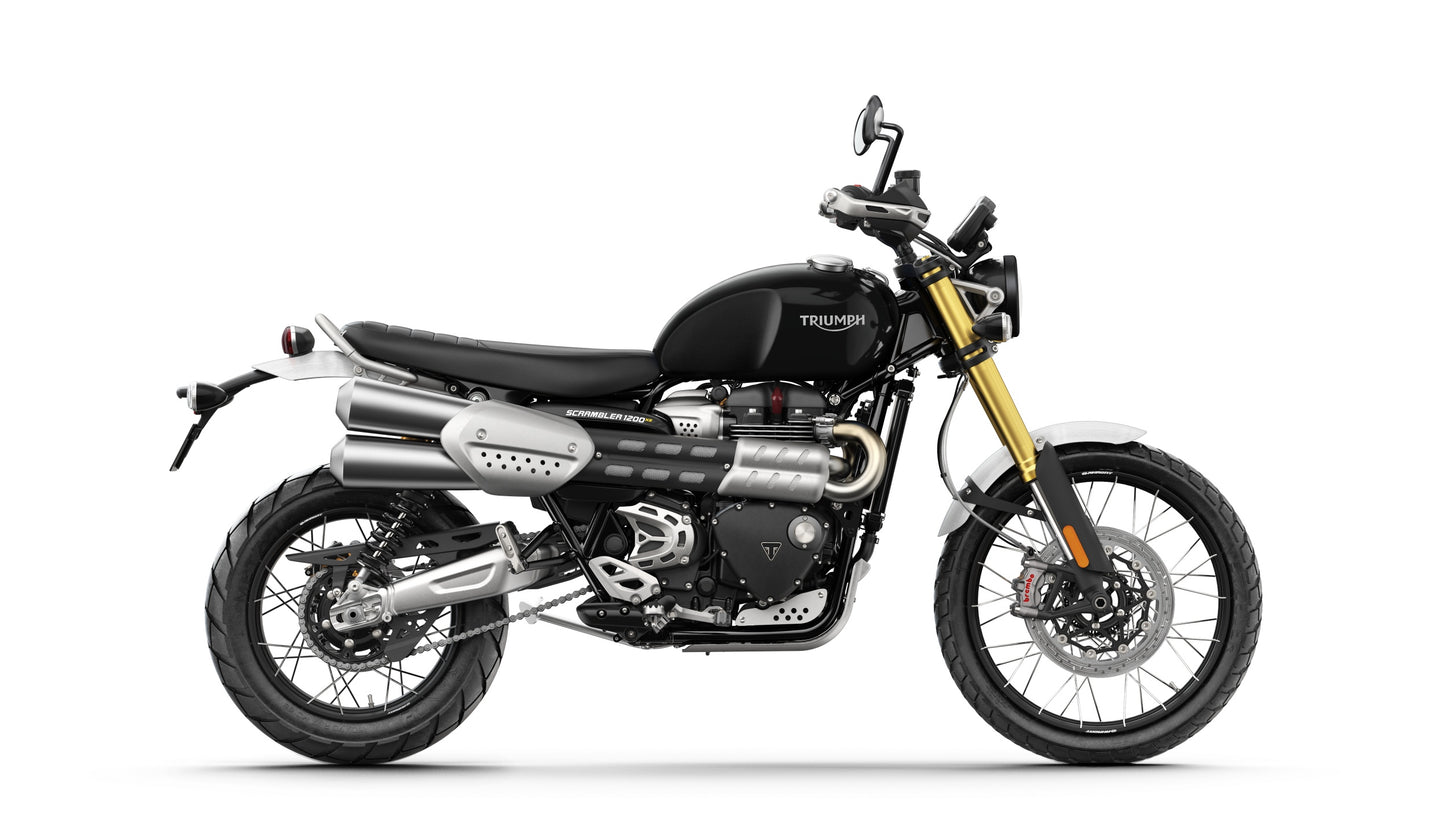

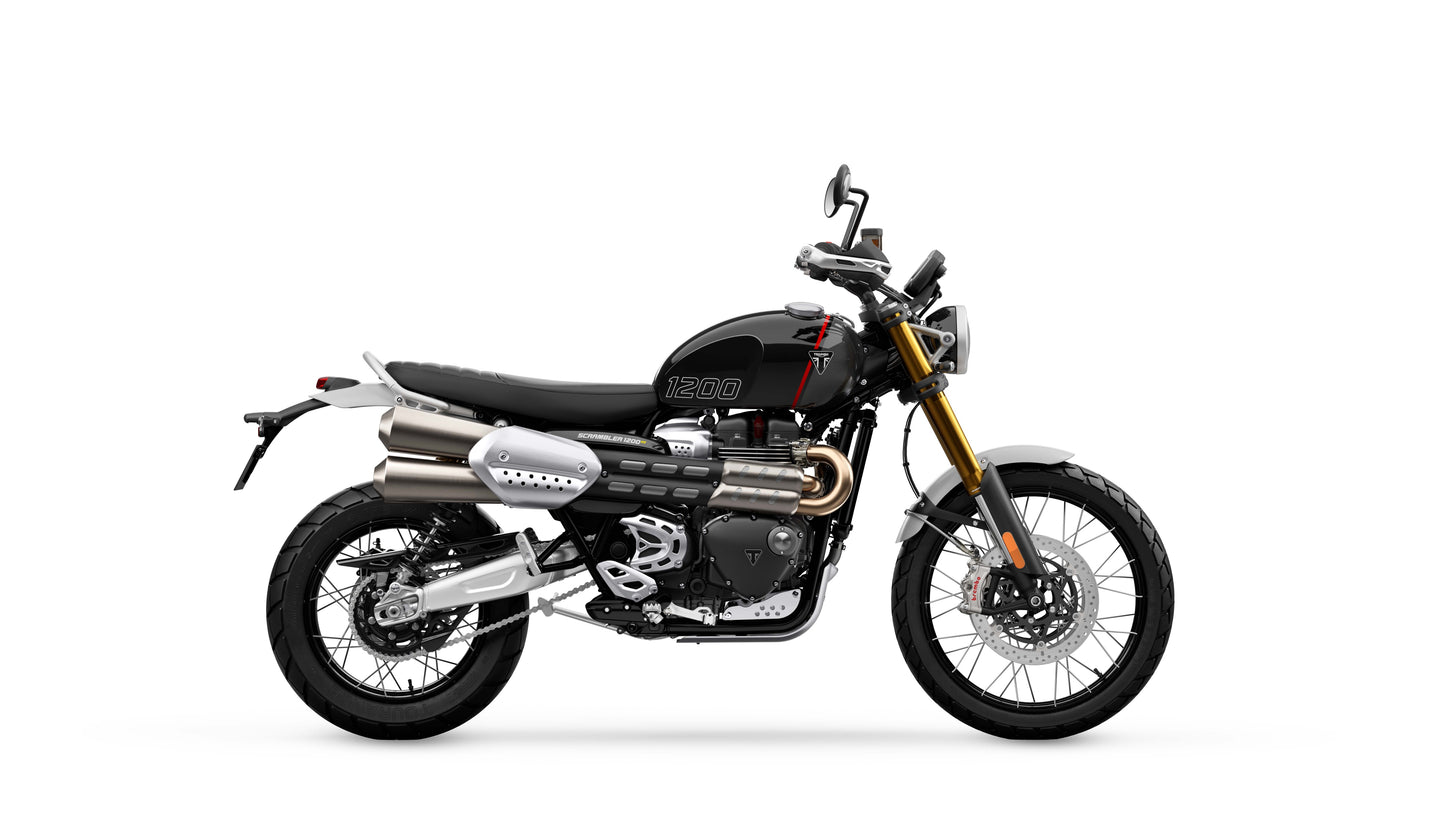

SCRAMBLER 1200 XE
SCRAMBLER 1200 XE
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
Incredible off-road capability with impeccable road manners, the 1200 XE is the ultimate Scrambler. Hit those hot summer savings today.
MODEL
YEAR
TECHNICAL SPECIFICATION
| TypeLiquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin |
| Capacity1200 cc |
| Bore97.6 mm |
| Stroke80 mm |
| Compression11:1 |
| Max Power EC90PS / 89bhp (66.2kW) @7000rpm |
| Max Torque EC110 Nm @ 4250 rpm |
| SystemRide by wire, multipoint sequential electronic fuel injection |
| ExhaustBrushed 2 into 2 exhaust system with brushed high level silencers |
| Final DriveX ring chain |
| ClutchWet, multi-plate assist clutch |
| Gearbox6-speed |
| FrameTubular steel |
| SwingarmTwin-sided, aluminium |
| Front WheelTubeless 36-spoke 21 x 2.15in, aluminium rims |
| Rear WheelTubeless 32-spoke 17 x 4.25in, aluminium rims |
| Front Tyre90/90-21 |
| Rear Tyre150/70 R17 |
| Front SuspensionMarzocchiâ„¢ 45mm 1 1 forks, fully adjustable. 250mm wheel travel |
| Rear SuspensionMarzocchi twin RSU’s with piggyback reservoir, fully adjustable. 250mm wheel travel |
| Front BrakesTwin 320mm Brembo discs, Brembo M4.30 4-piston radial monobloc calipers, ABS |
| Rear BrakesSingle 255mm disc, single piston floating Nissin caliper, ABS |
| Instrument Display and FunctionsFull-colour TFT instruments |
| Service Interval10,000 miles / 16,000 km or 12 months, whichever comes first |
| Width Handlebars905 mm |
| Height Without Mirror1250 mm |
| Seat Height870 mm |
| Wheelbase1570 mm |
| Rake26.9 º |
| Trail129.2 mm |
| Tank Capacity15 L |
| Wet Weight230 kg |
