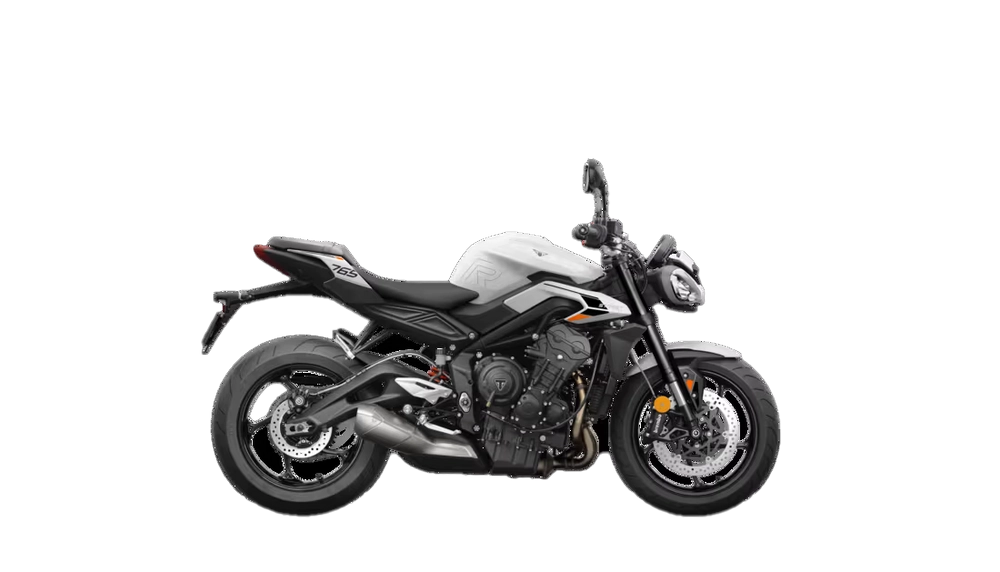

SPEED TRIPLE 765 R
SPEED TRIPLE 765 R
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
A major step-up in performance, capability, and technology, to match its legendary triple powered character – this is the new definitive streetfighter.
CLASS LEADING PERFORMANCE
MODEL
YEAR
TECHNICAL SPECIFICATION
| TypeLiquid-cooled, 12 valve, DOHC, inline 3-cylinder |
| Capacity765 cc |
| Bore78.0 mm |
| Stroke53.4 mm |
| Compression13.25:1 |
| Max Power EC120 PS / 118.4 bhp (88.3 kW) @ 11,500 rpm |
| Max Torque EC80 Nm @ 9,500 rpm |
| SystemMultipoint sequential electronic fuel injection with electronic throttle control |
| ExhaustStainless steel 3 into 1 header system with low single sided stainless steel silencer |
| Final DriveX-ring chain |
| ClutchWet, multi-plate, slip |
| Gearbox6 speed |
| FrameAluminium beam twin spar frame with 2 piece high pressure die cast rear subframe |
| SwingarmTwin-sided, cast aluminium alloy |
| Front WheelCast aluminium alloy 5 spoke, 17 x 3.5 in |
| Rear WheelCast aluminium alloy 5 spoke, 17 x 5.5 in |
| Front Tyre120/70 ZR 17 |
| Rear Tyre180/55 ZR 17 |
| Front SuspensionShowa 41 mm upside down Separate Function Forks – Big Piston (SFF-BP), adjustable compression and rebound damping, and preload adjustment. 115mm wheel travel |
| Rear SuspensionShowa piggyback reservoir monoshock, adjustable compression, rebound and preload adjustment. 133.5mm wheel travel |
| Front BrakesTwin 310 mm floating discs, Brembo M4.32 4-piston radial monobloc calipers, OC-ABS |
| Rear BrakesSingle 220 mm disc, Brembo single piston caliper, OC-ABS |
| Instrument Display and FunctionsMulti-function instruments with colour TFT screen |
| CO2 FiguresEURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
| Service Interval6,000 miles (10,000km)/12 months (whichever comes first) |
| Width Handlebars792 mm |
| Height Without Mirror1047 mm |
| Seat Height826 mm |
| Wheelbase1402 mm |
| Rake23.7 º |
| Trail97.8 mm |
| Tank Capacity15 L |
| Wet Weight189 kg |
