Stator Assorted Harley Davidson Models (Refer to Fitments) (RMS010-108654)
Stator Assorted Harley Davidson Models (Refer to Fitments) (RMS010-108654)
separator
Or split over 4 payments with Afterpay

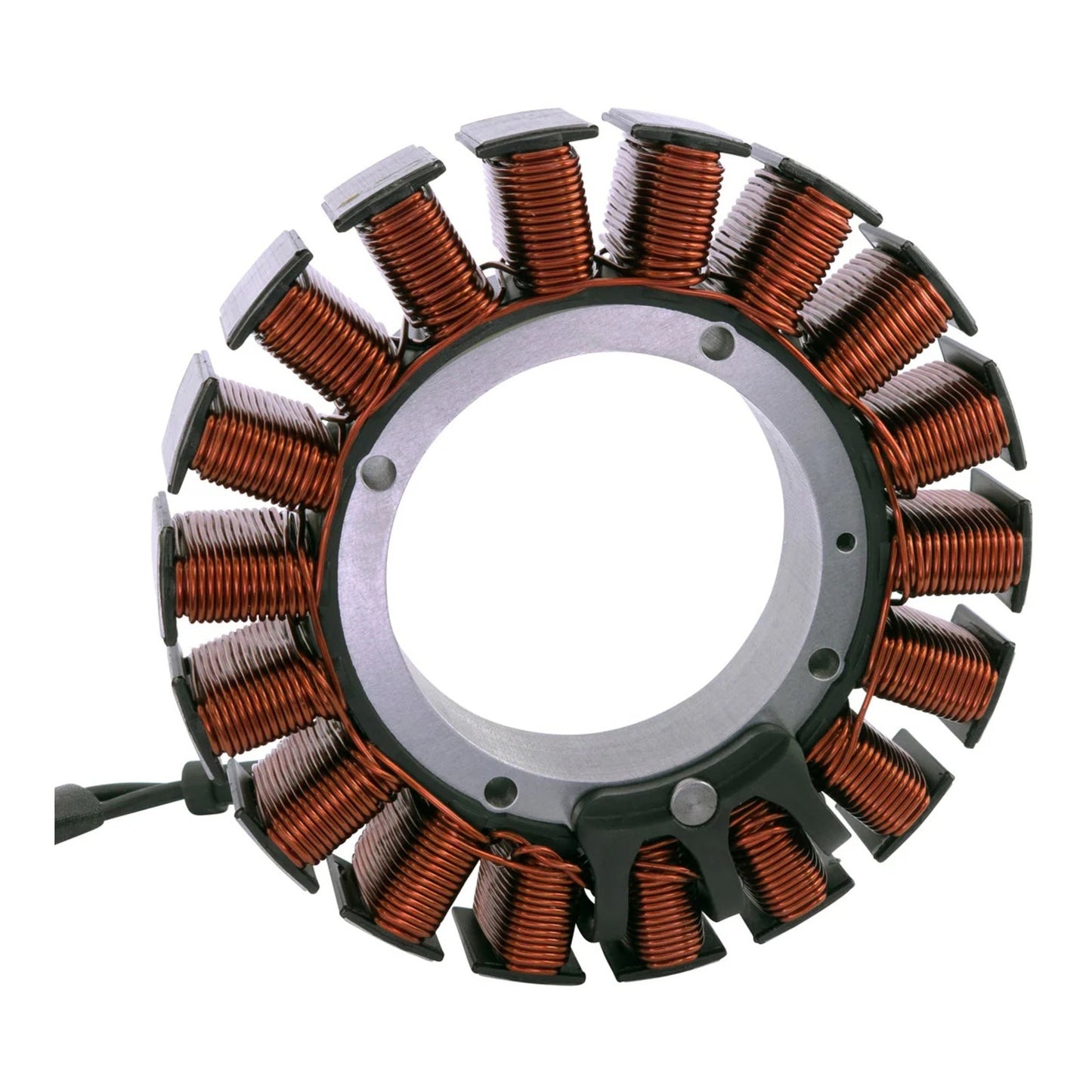

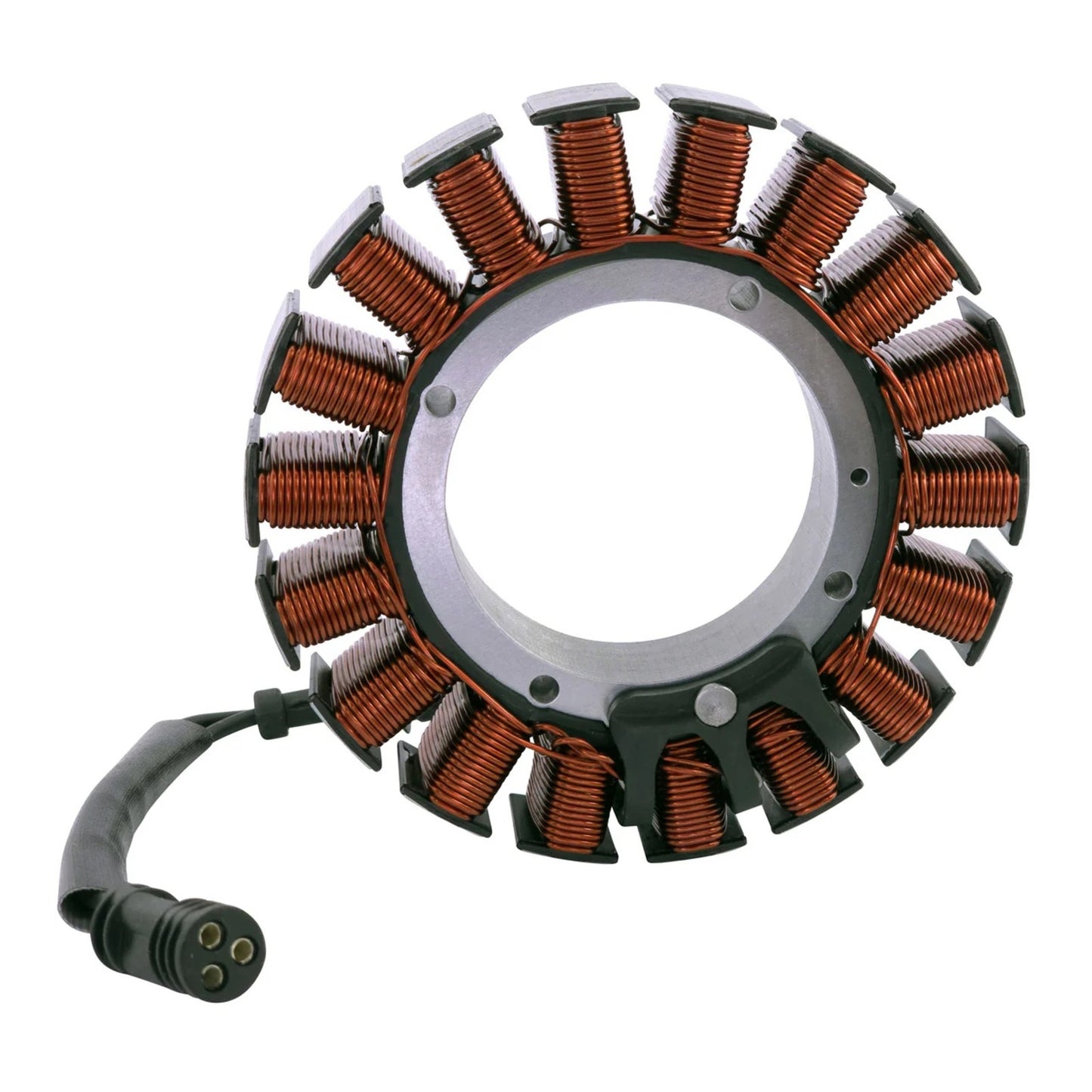

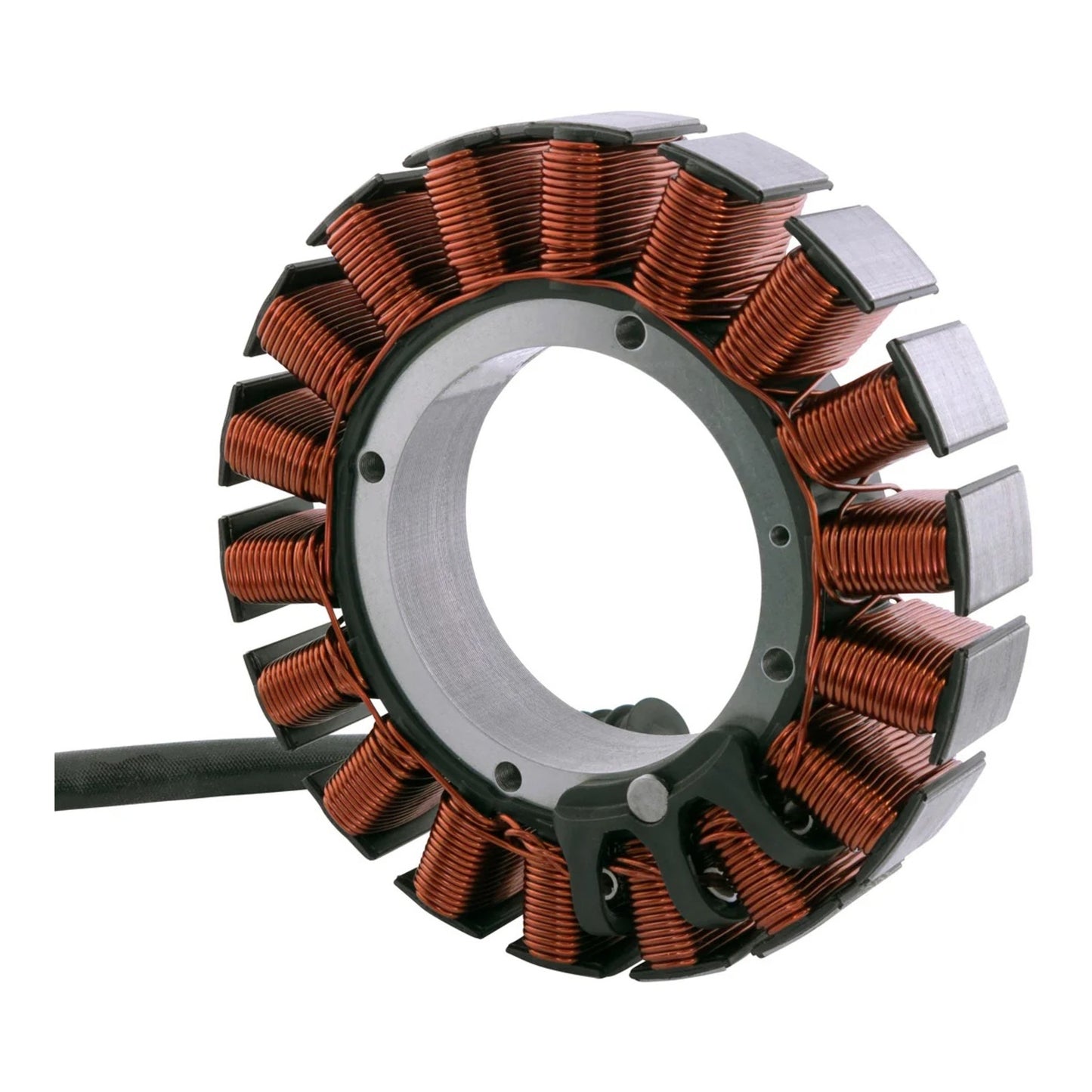

Brand new aftermarket stator.
Features:
- Direct replacement for your original unit.
- Plug-and-play, direct fit, easy installation.
- Made with the highest grade lamination materials.
- Premium copper winding, resistant up to 200°C.

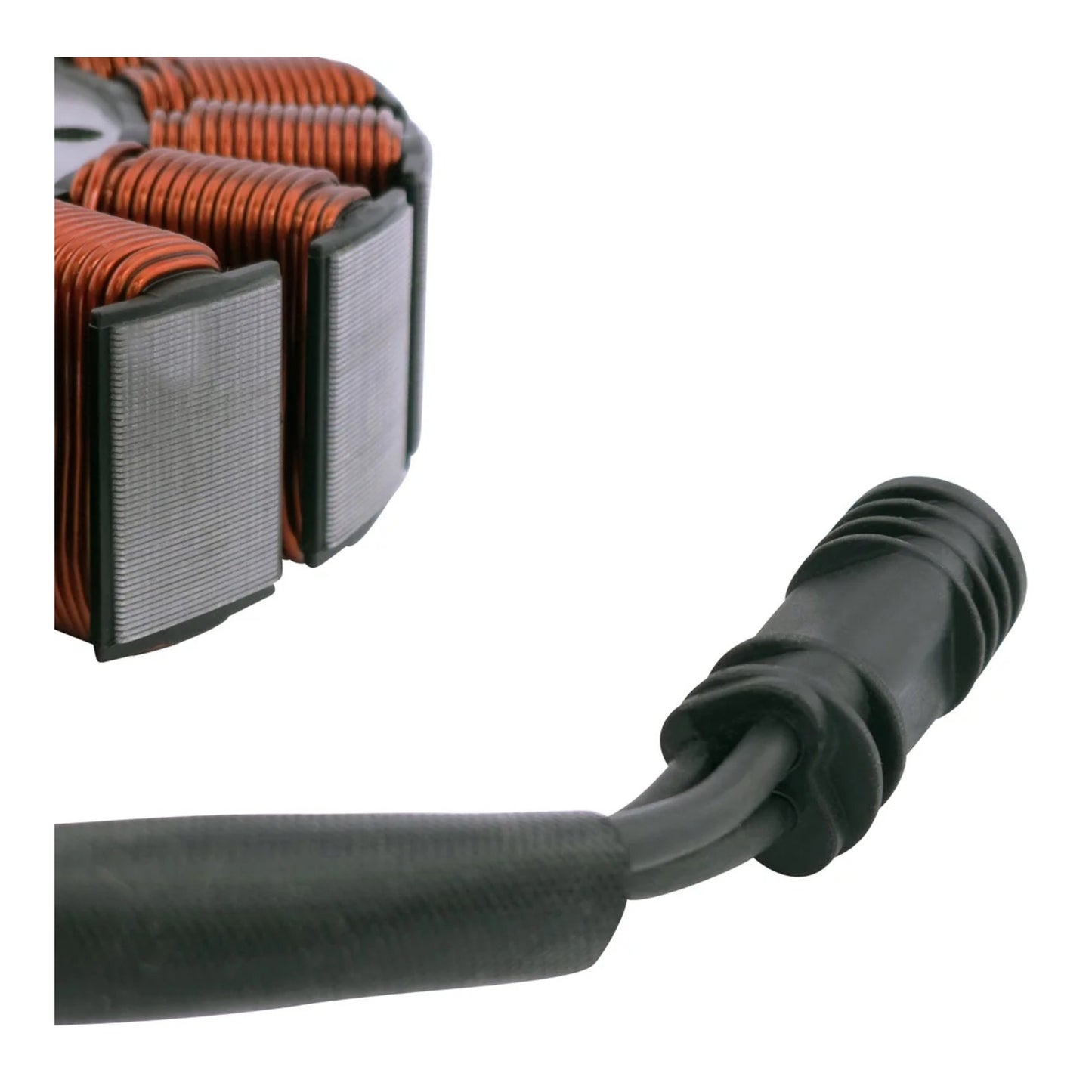

- Connectors included.
- Rubber grommet included.
- All products are fully tested before shipping.
Specifications:
Dimensions:
- Interior diameter: 71 mm
- Exterior diameter: 144 mm
- Thickness: 24 mm
- Length of wires (stator ? grommet): 40 mm
- Length of wires (grommet ? plug): 130 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1

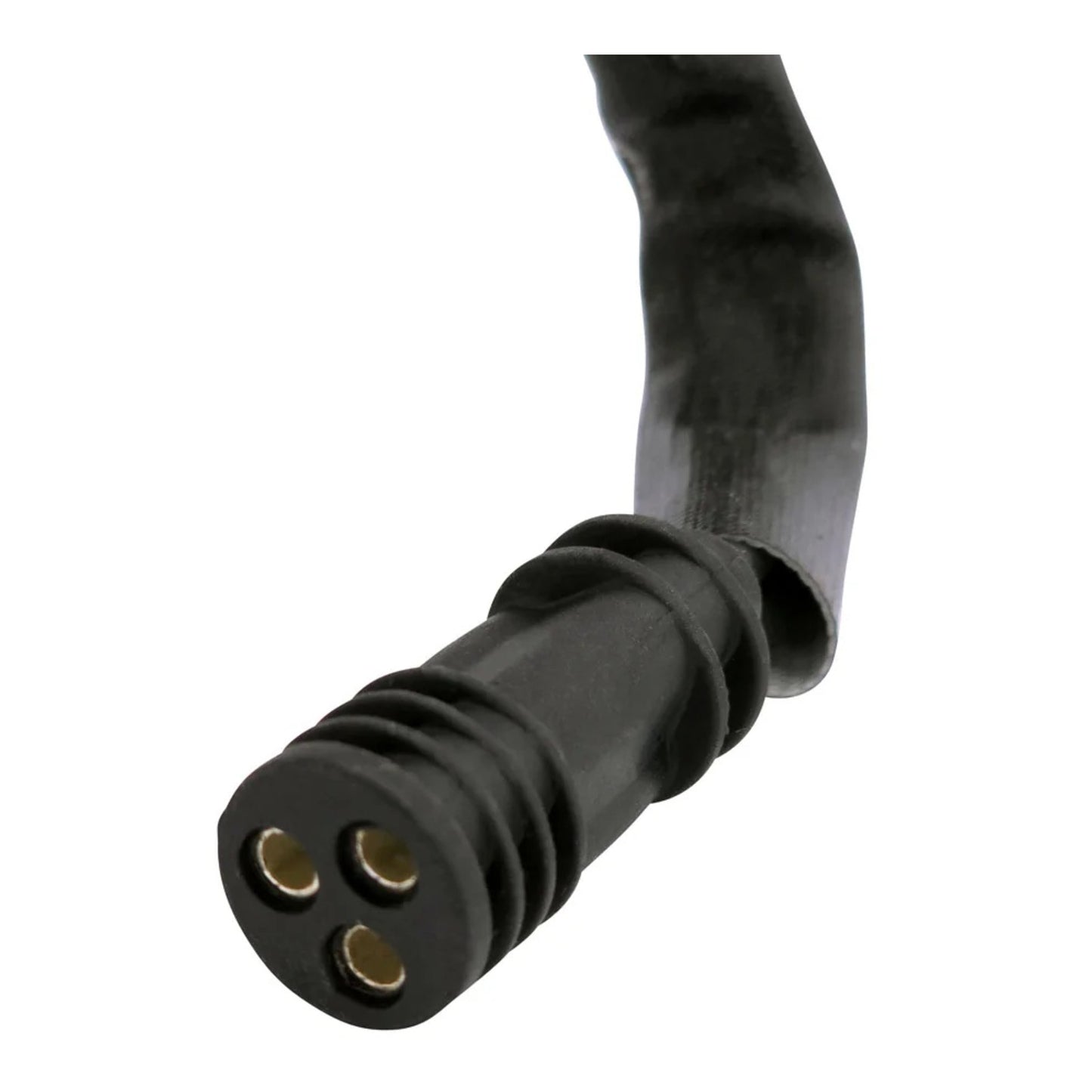

- Number of pins: 3
- Number of poles: 18
Wire-to-wire resistance:
- Alternator: Black to Black = 0.6 O ±20%
- Alternator: Black to Ground = O.L (Open Loop)
Brand new aftermarket stator.
Features:
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Connectors included.
- Rubber grommet included.
- All products shipped are tested.
Specifications:
Dimensions
- Interior diameter: 71 mm
- Exterior diameter: 144 mm
- Thickness: 24 mm
- Length of wires stator to grommet: 40 mm
- Length of wires grommet to plug: 130 mm
Other specifications
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
- Number of poles: 18
Wire-to-wire resistance
- Alternator: Black to Black = 0.6 ohms +/-20%
- Alternator: Black to ground = O.L
*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
