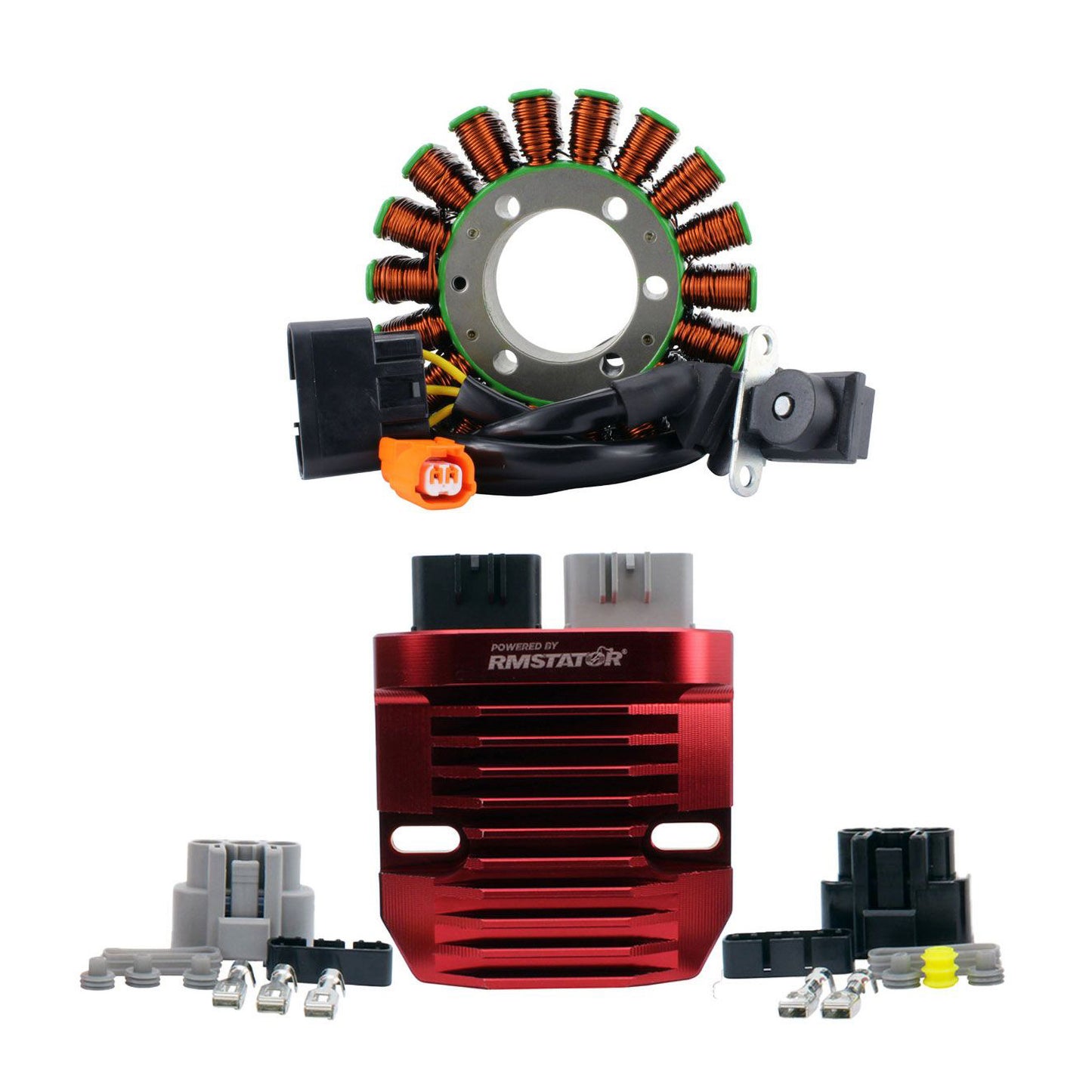

STATOR + CNC MOSFET KIT HON TRX420FA 14-19 (RMS900-107352)

Kit Stator + RMSTATOR Red Machined Aluminum Mosfet Regulator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

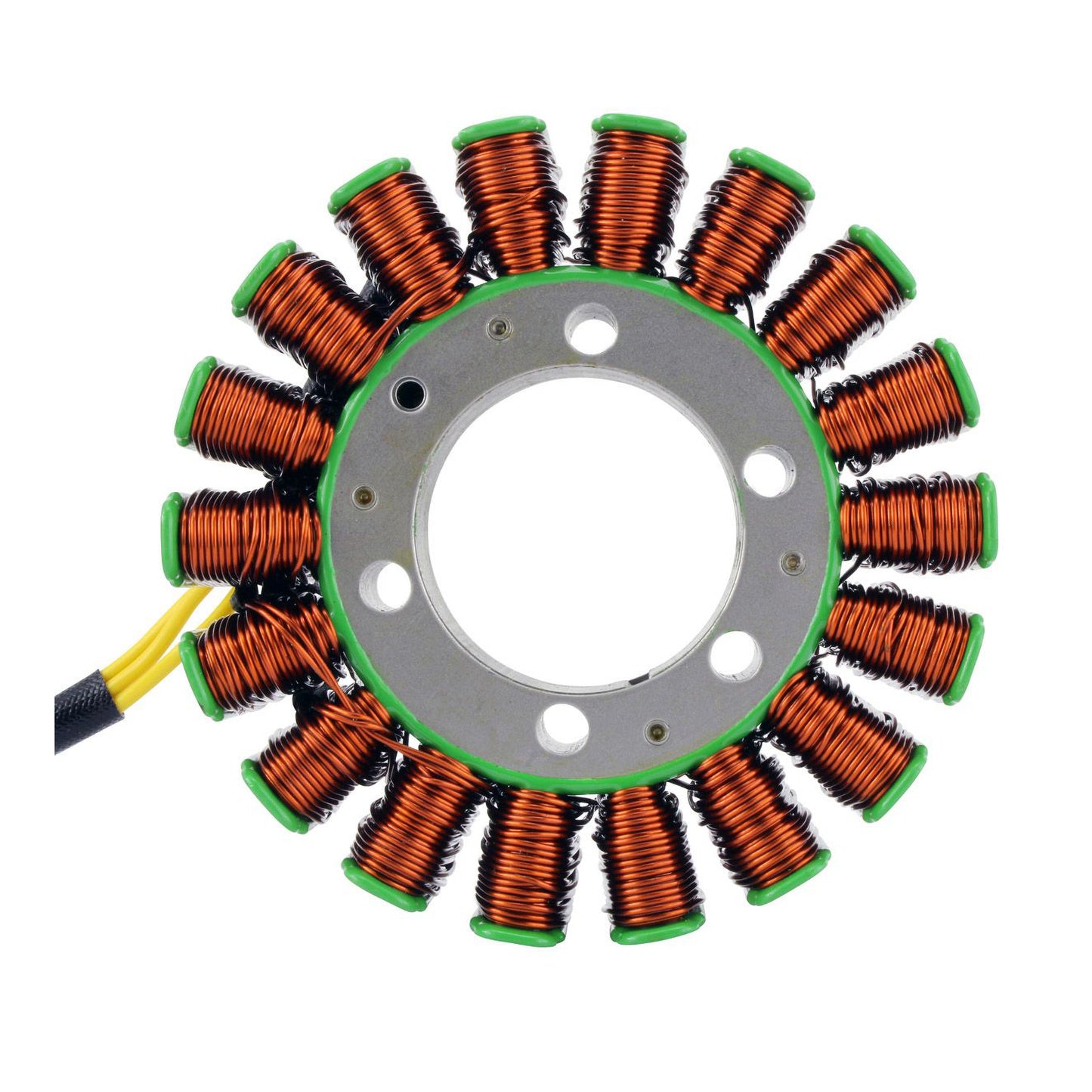

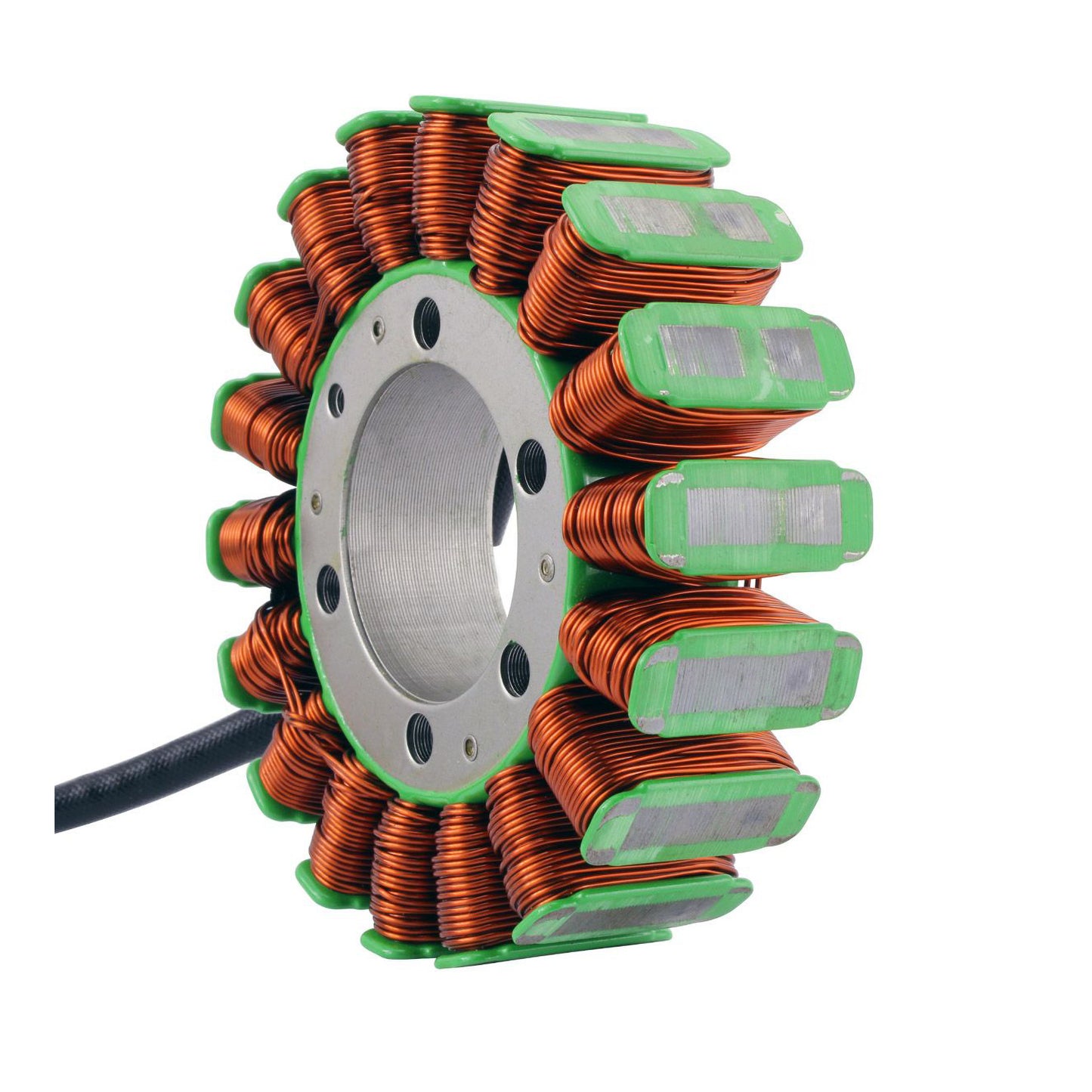

Brand new aftermarket Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included

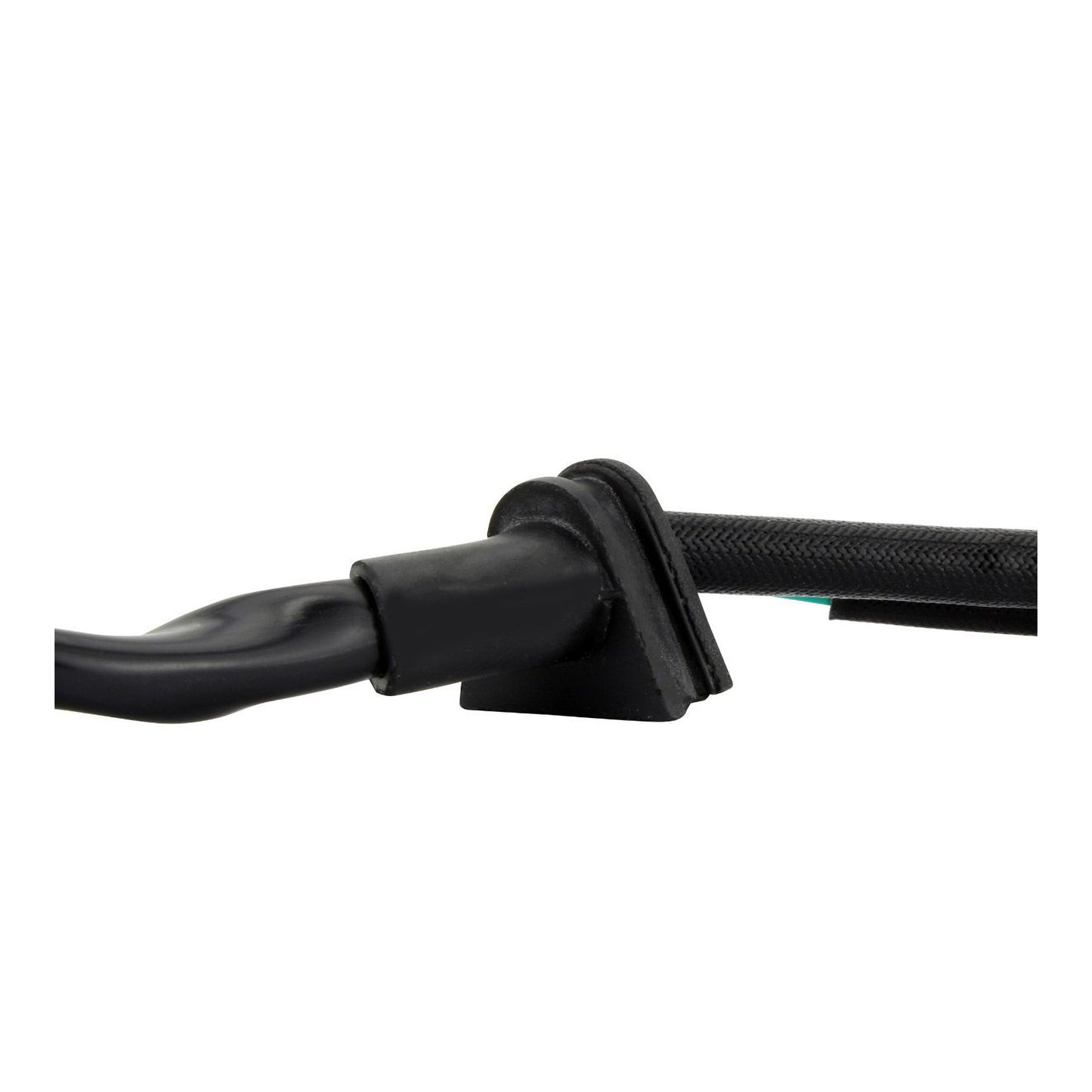

• Rubber grommet included

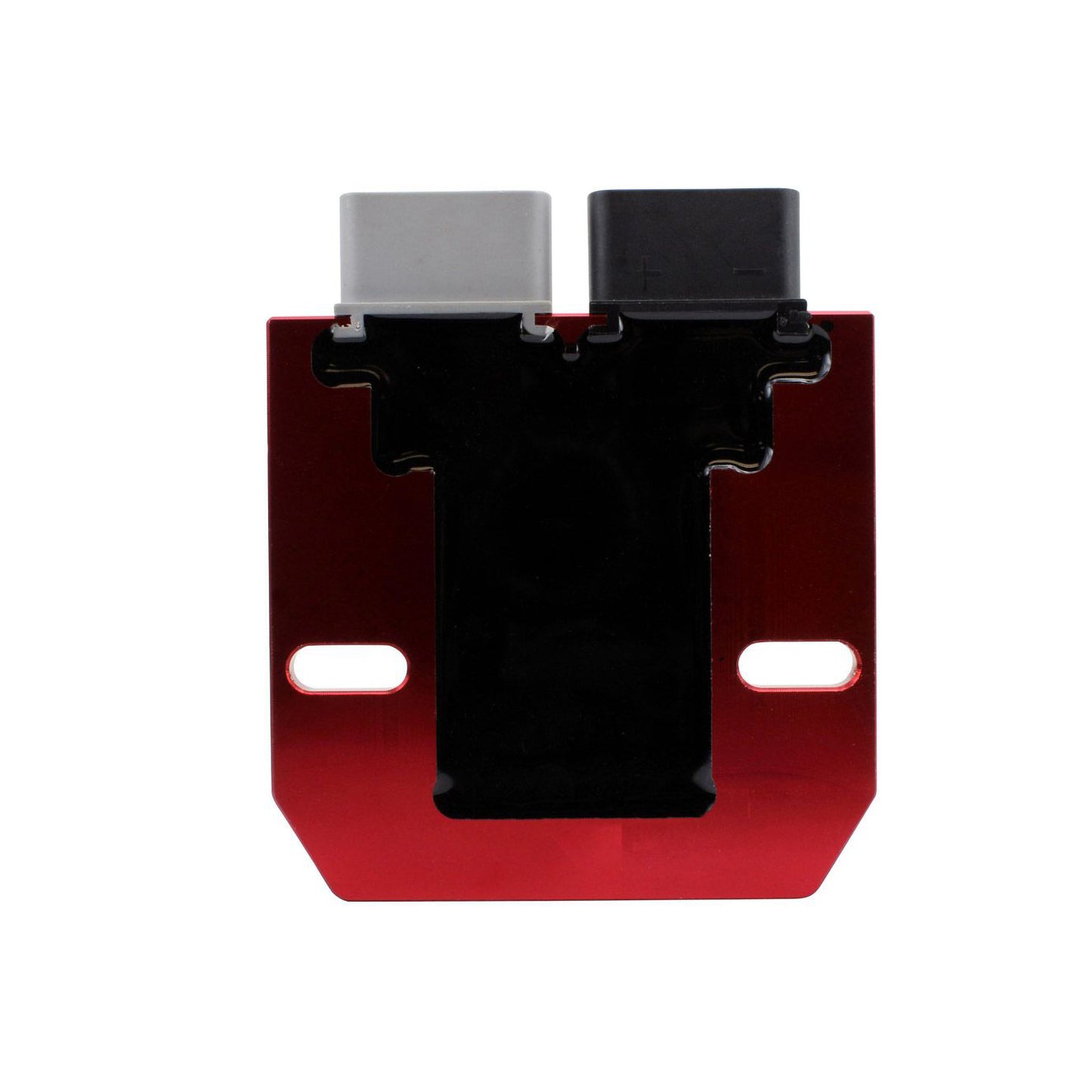

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator

Our new red machined aluminium Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminium heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

Specifications:

• Stator:

  • Dimensions:
    • I nterior diameter: 42 mm
    • Exterior diameter: 107 mm
    • Thickness: 24 mm
    • Length of wires stator to grommet: 110 mm
    • Length of wires grommet to plug: 370 mm & 835 mm
    • Length of pickup coil\'s wire to grommet: 80 mm
  • Other Specifications:
    • Number of wires: 5
    • Number of plugs: 2
    • Number of pins: 5
    • Number of poles: 18
    • Wire to wire resistance:
      • Alternator: Between each Yellow = 0.6 ohms ±20%
      • Alternator: to ground = O.L (open loop)
      • Pickup: Blue/Yellow to Green = 116 ohms ±20%

• RMSTATOR Red Machined Aluminum Mosfet Regulator:

  • Dimensions:
    • Width: 103 mm
    • Length: 103 mm
    • Height: 28 mm
    • Fixation holes center to center: 80 mm
  • Other Specifications:
    • Number of plugs: 2
    • Number of pins: 5
    • Number of wires: 0
    • Minimum Charging Voltage: 14.5 V ± 0.5 V
    • Maximum Charging Current: 50 A / 500 W
    • Open Circuit Voltage: 15 V
    • Operation Temperature: -20°C to 85°C
