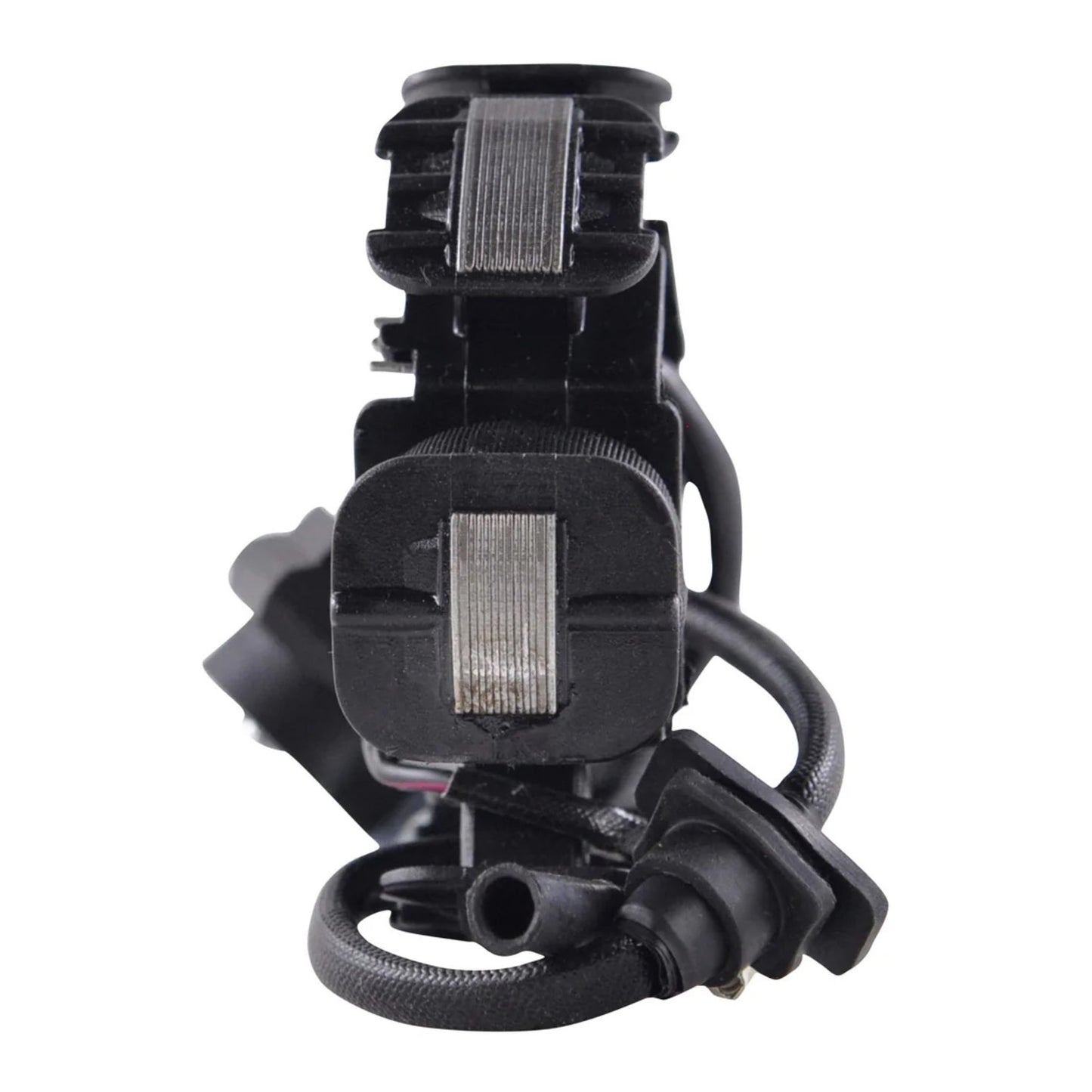

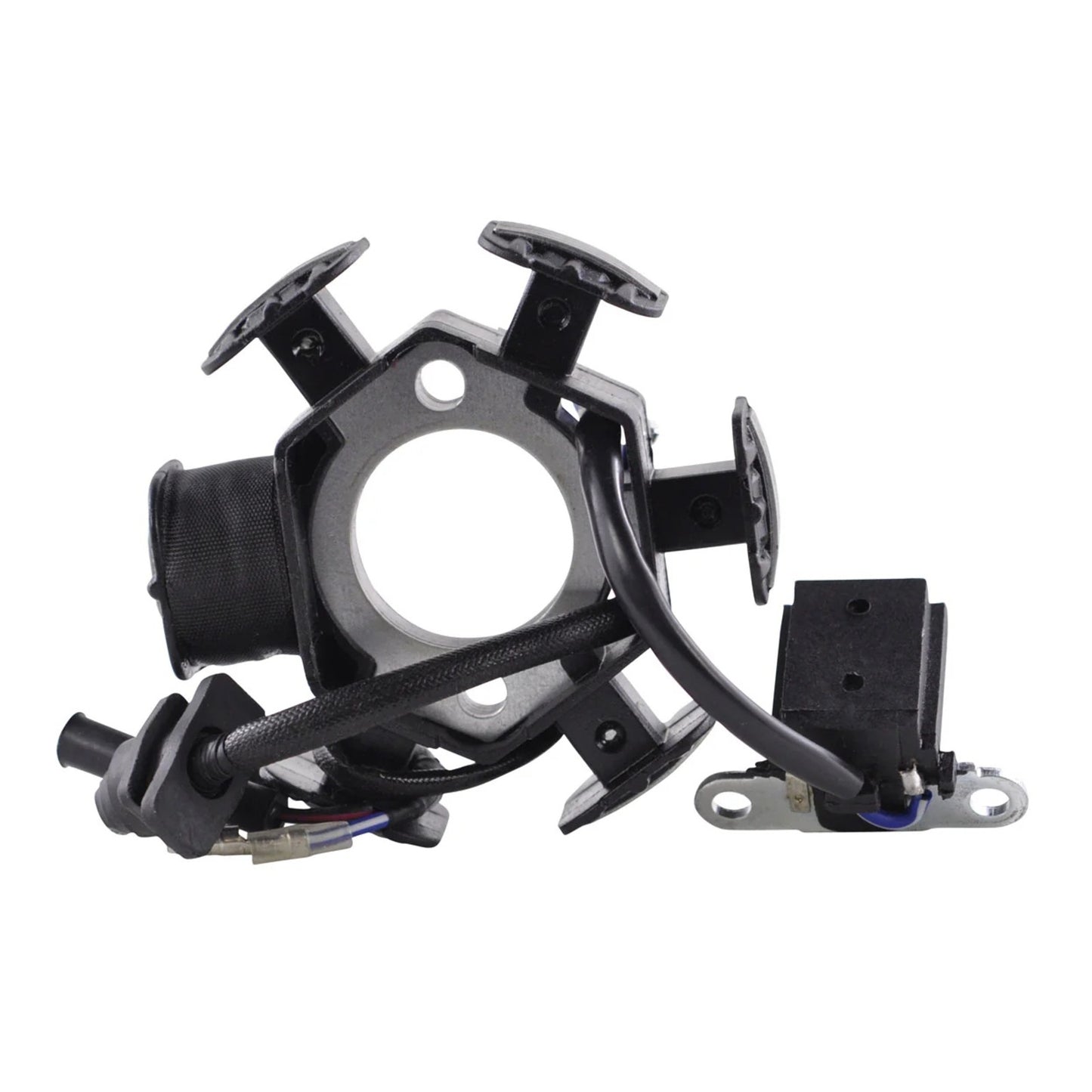

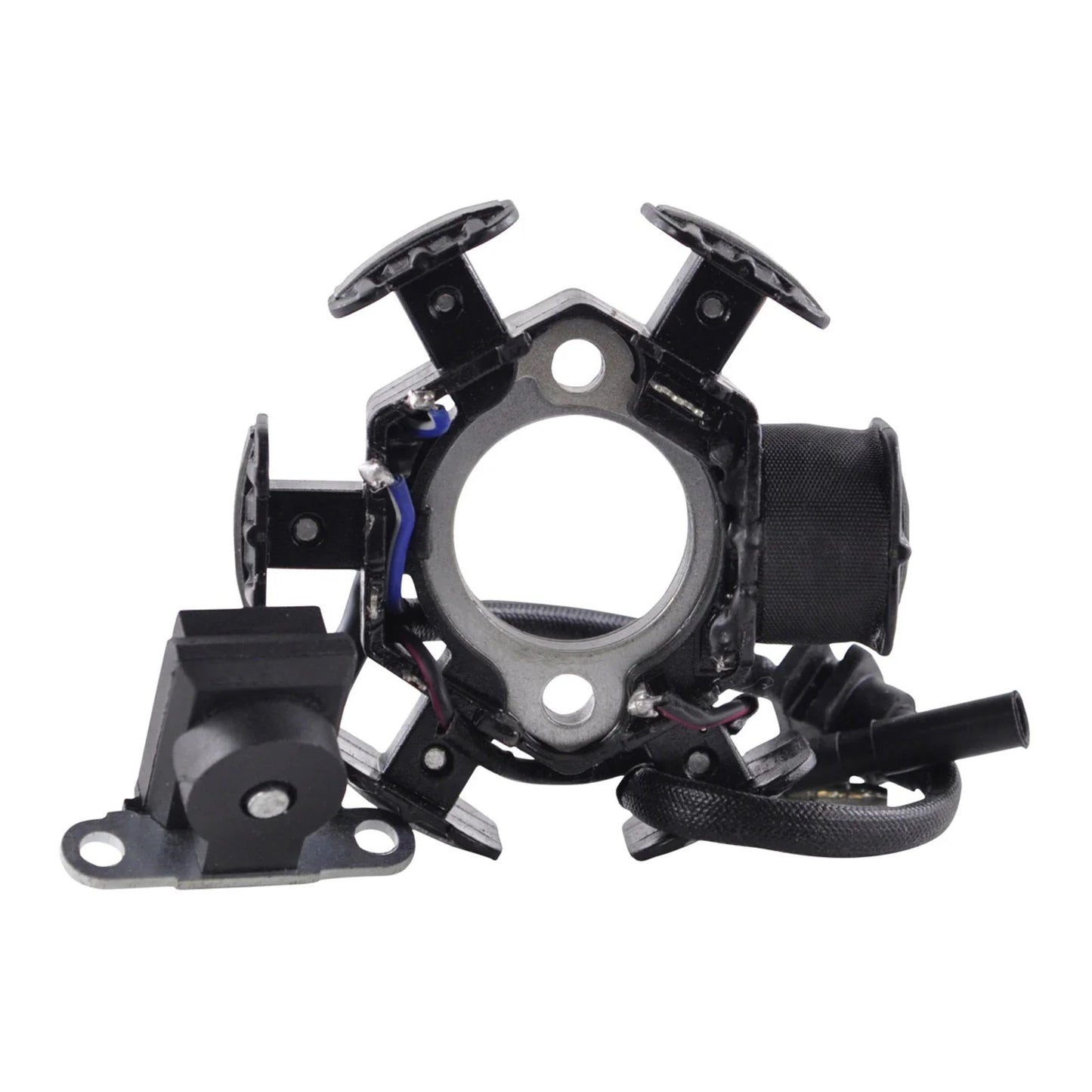

Stator for Honda CRF50F XR50R / Z50R / XR70R \'88-\'24

Brand new aftermarket Stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

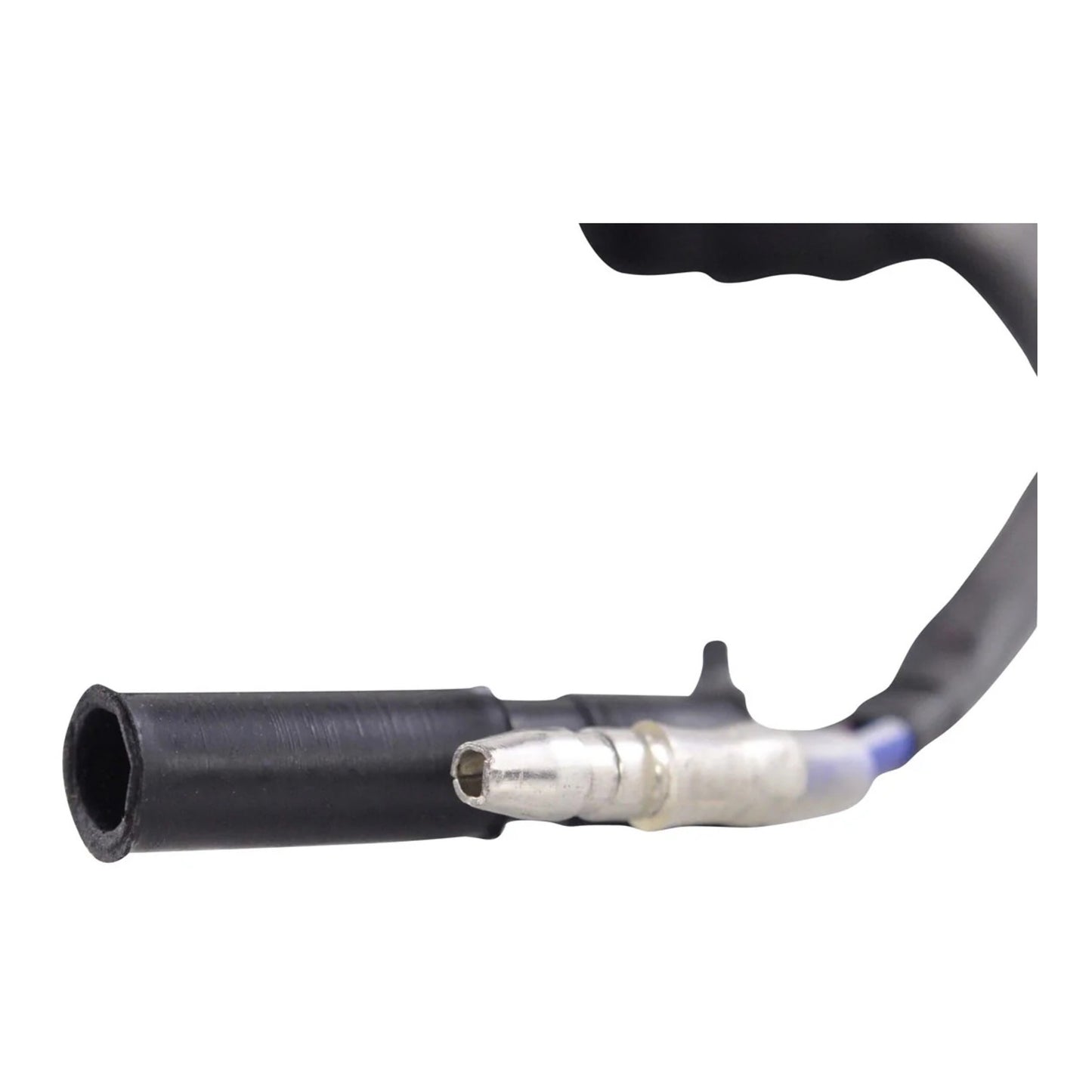

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

Specifications:

Dimensions

• Interior diameter: 29mm
• Exterior diameter: 83mm
• Thickness : 9 mm
• Length of wires stator to grommet: 40mm
• Length of wires grommet to plug: 130mm
• Length of pickup coil\'s wire to grommet: 60mm

Other specifications

• Number of wires: 2
• Number of plugs: 2
• Number of pins: 2

Wire to wire resistance

• Pickup: Blue/Yellow to Bracket = 120 ohms +-20%
• Source: Black/Red to Ground = 715 ohms +-20%
