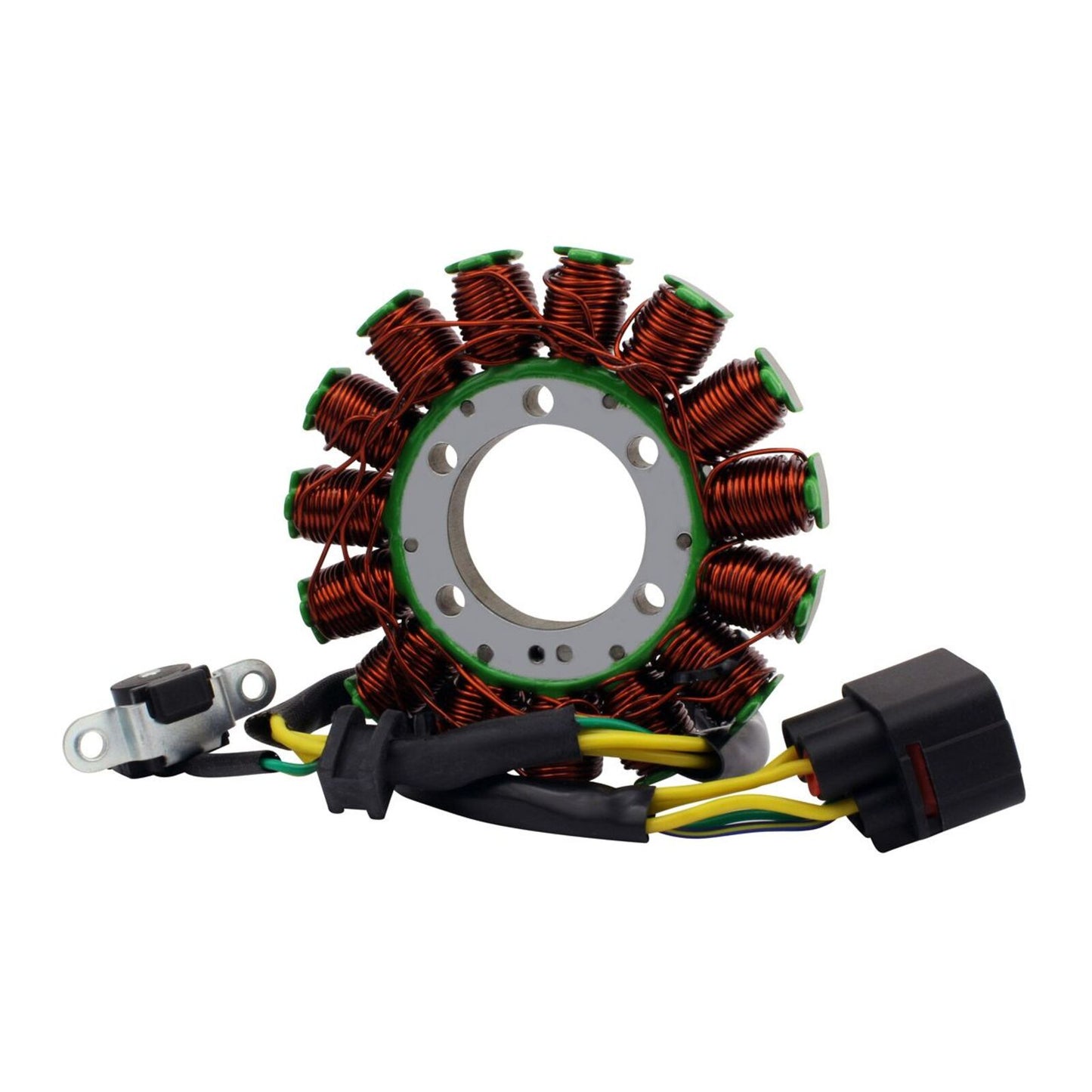

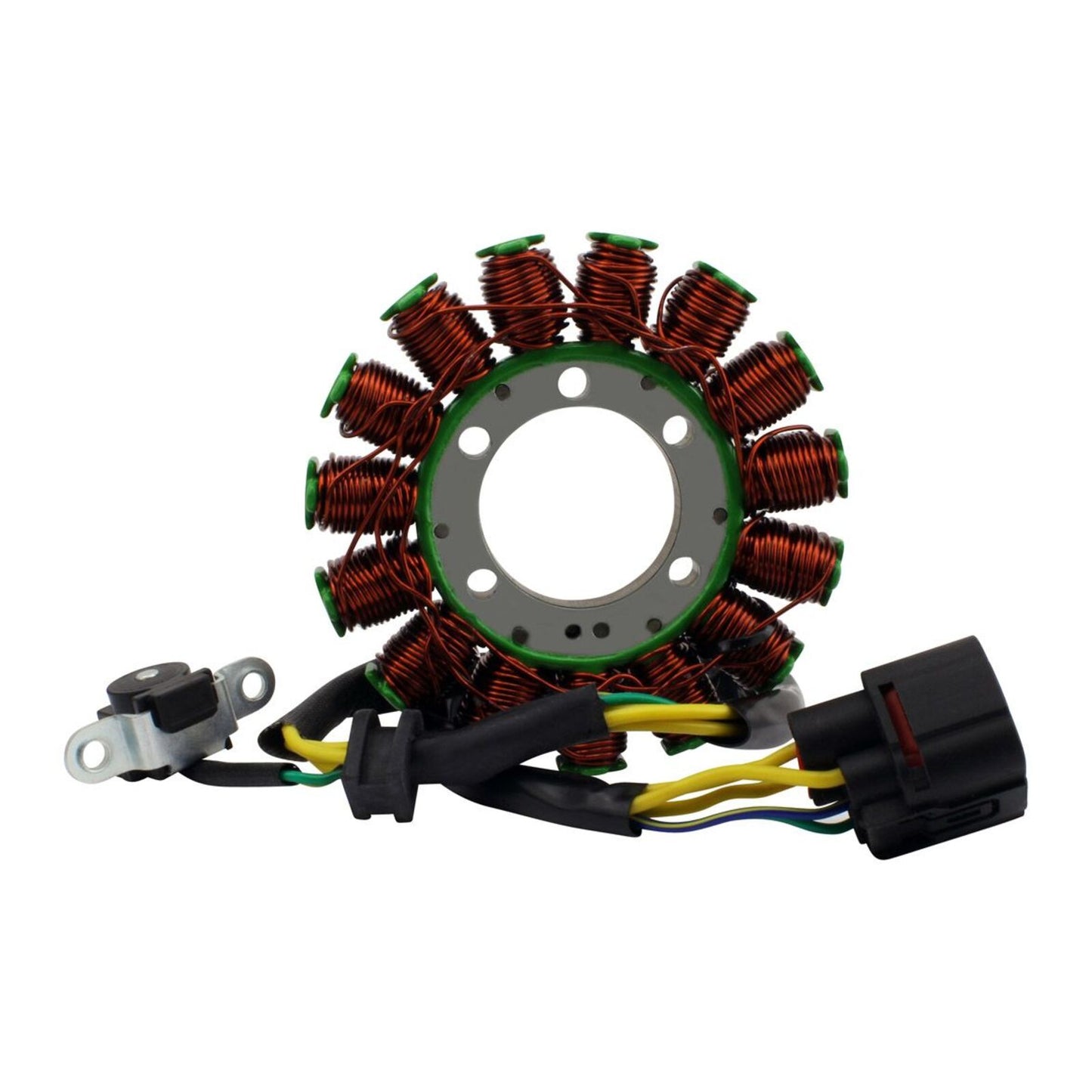

Stator for Honda SXS700 Pioneer (2014–2024) - RMS010-108248

Direct replacement to your original unit.

Features:

• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper winding, resistant to 200 degrees Celsius.

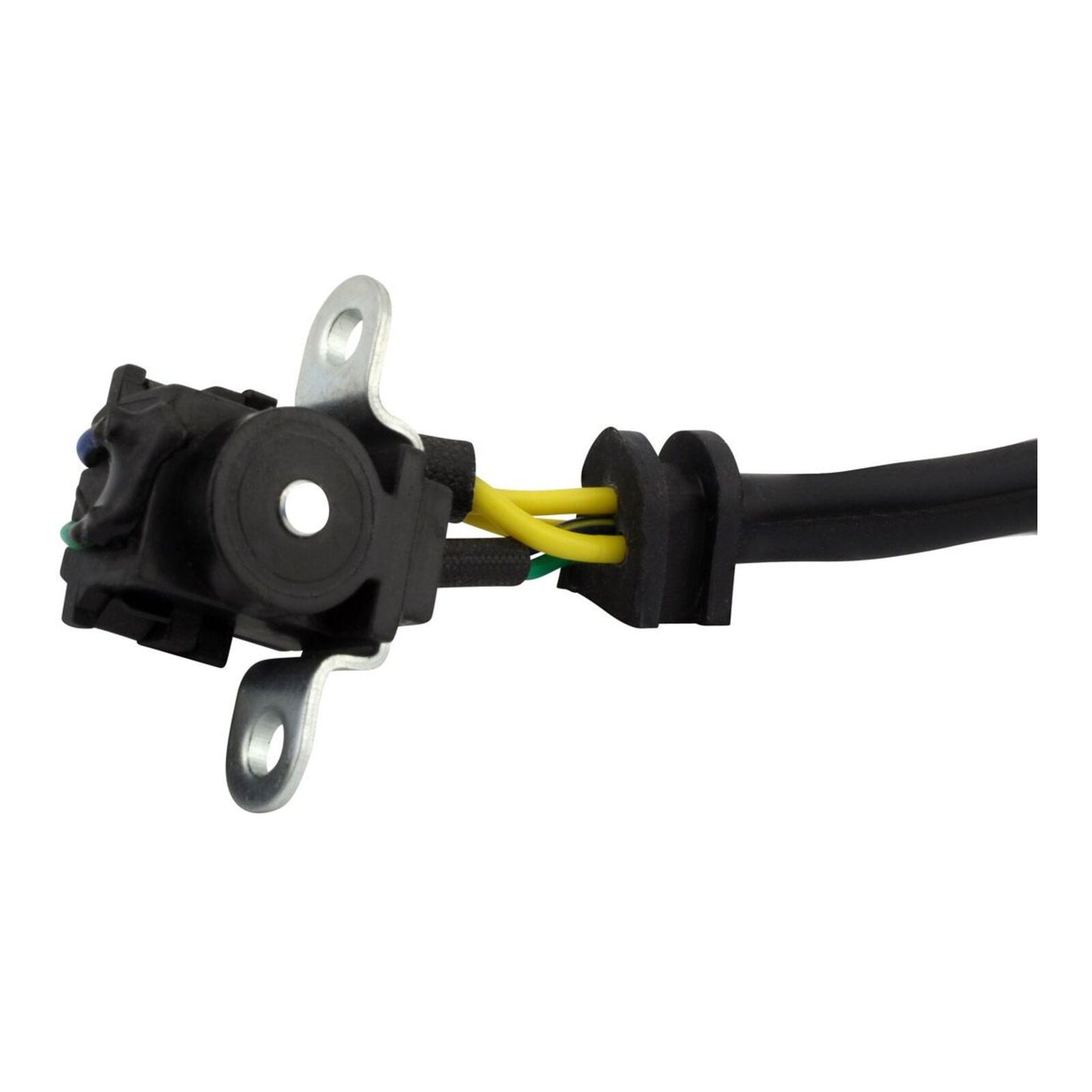

• Pickup pulsar coil included.
• Connectors included.
• Rubber grommet included.
• All products shipped are tested.

Dimensions:

• Interio r Diameter: 42 mm
• Exterior Diameter: 115 mm

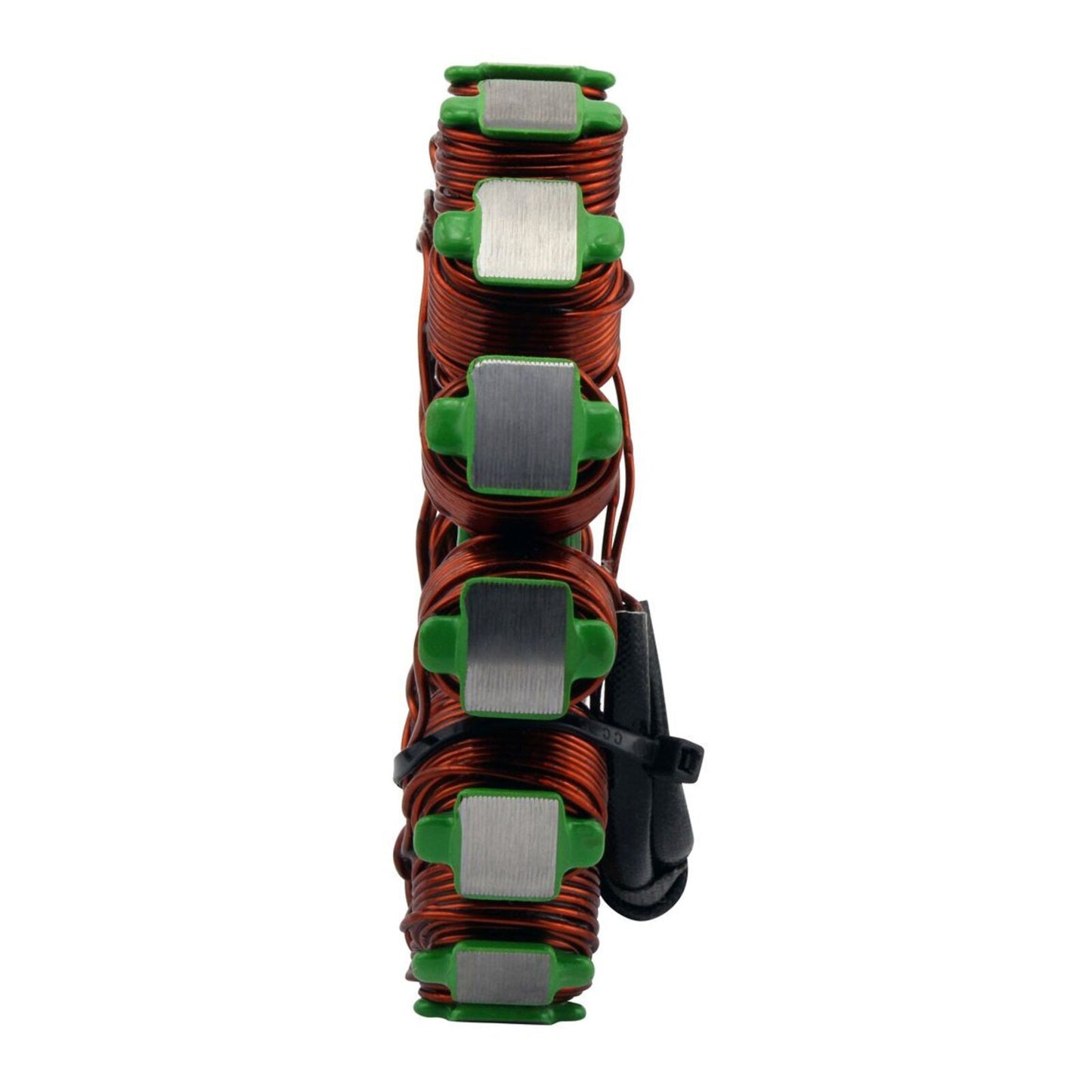

• Thickness: 10 mm
• Length of Wires (Stator to Grommet): 90 mm
• Length of Wires (Grommet to Plug): 40 mm
• Length of Pickup Coil\'s Wire to Grommet: 320 mm

Other Specifications:

• Number of Wires: 5

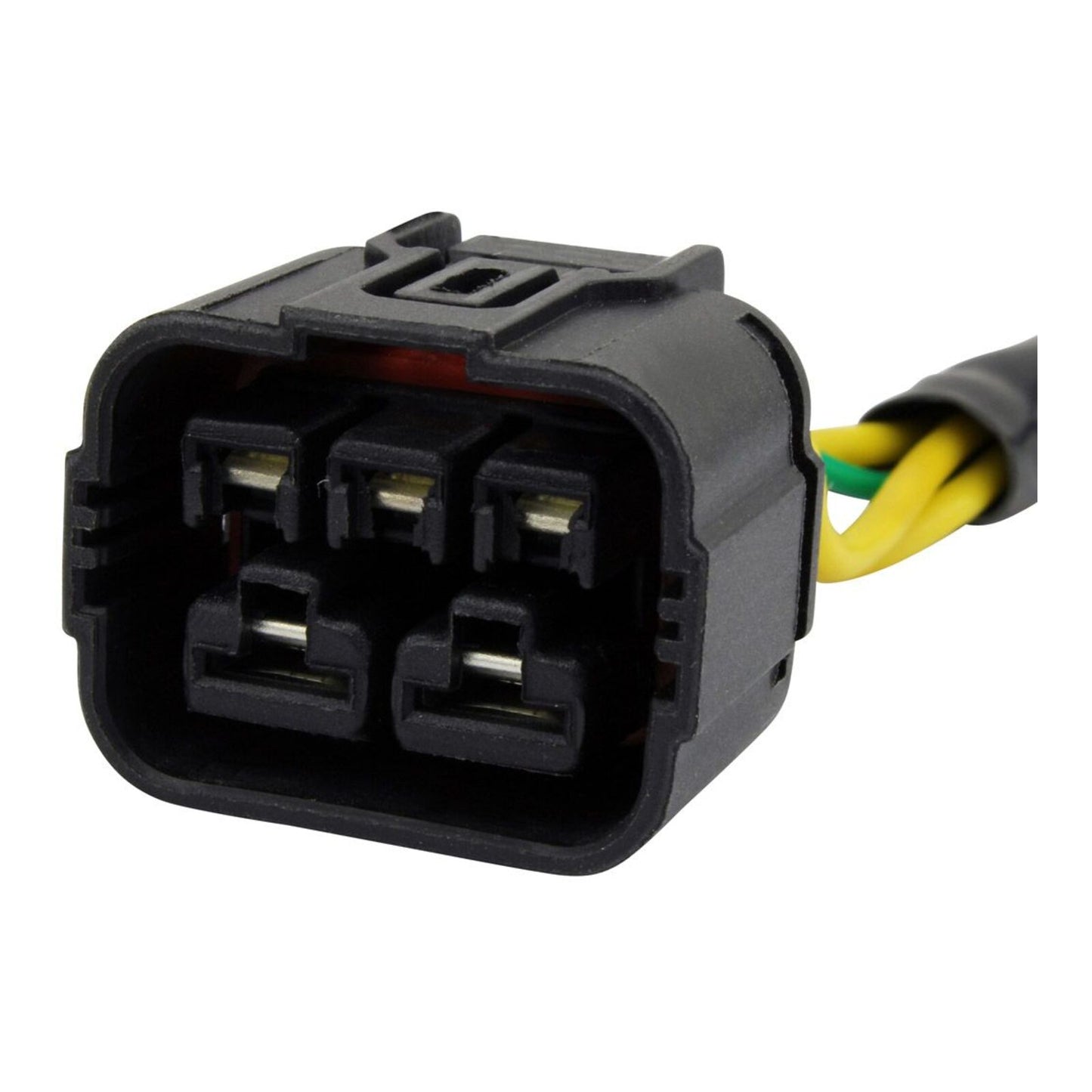

• Number of Plugs: 1
• Number of Pins: 5
• Number of Poles: 15
• Alternator (Yellow to Yellow): 0.4 ohms ± 20%
• Pickup (Blue/Yellow to Green): 240 ohms ± 20%
