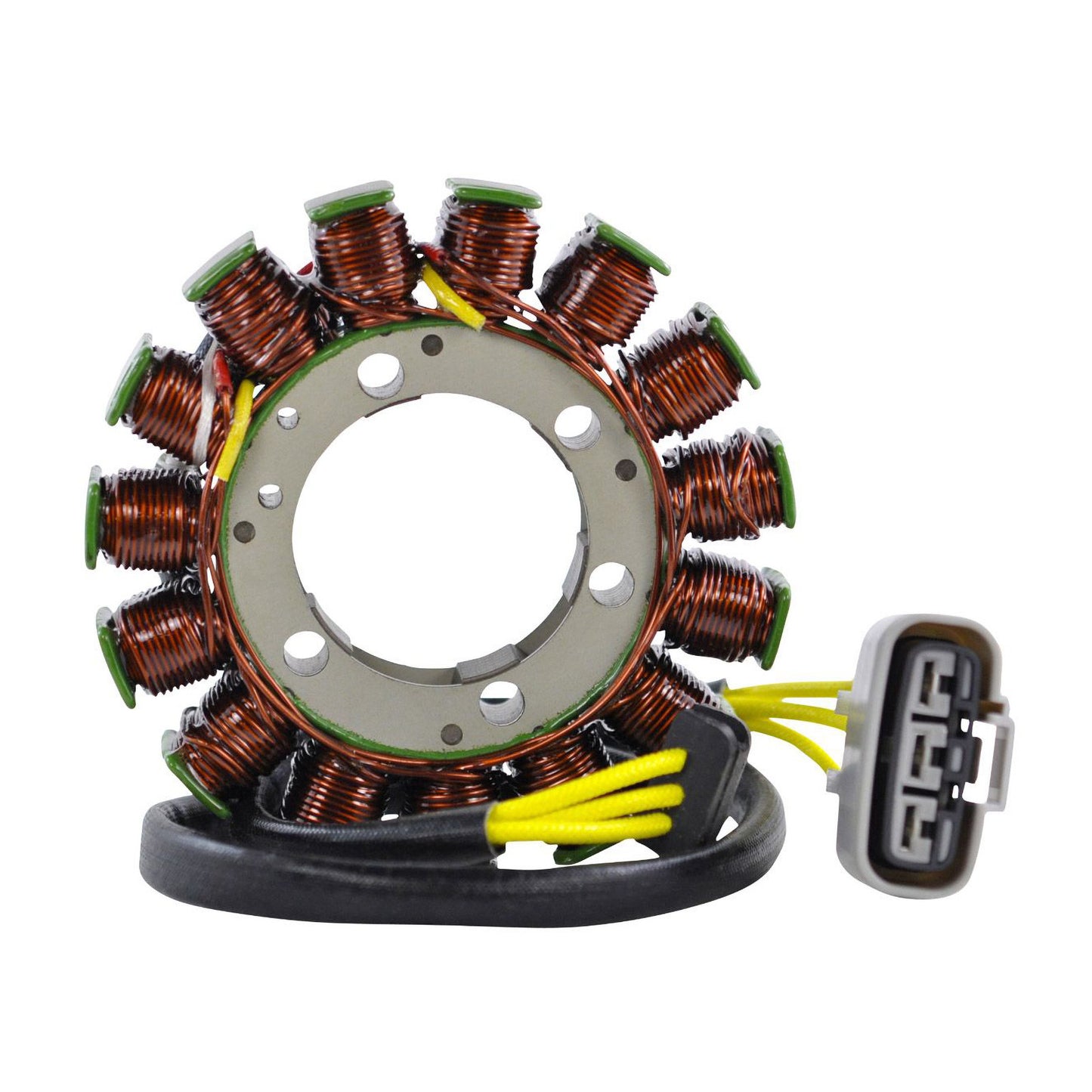

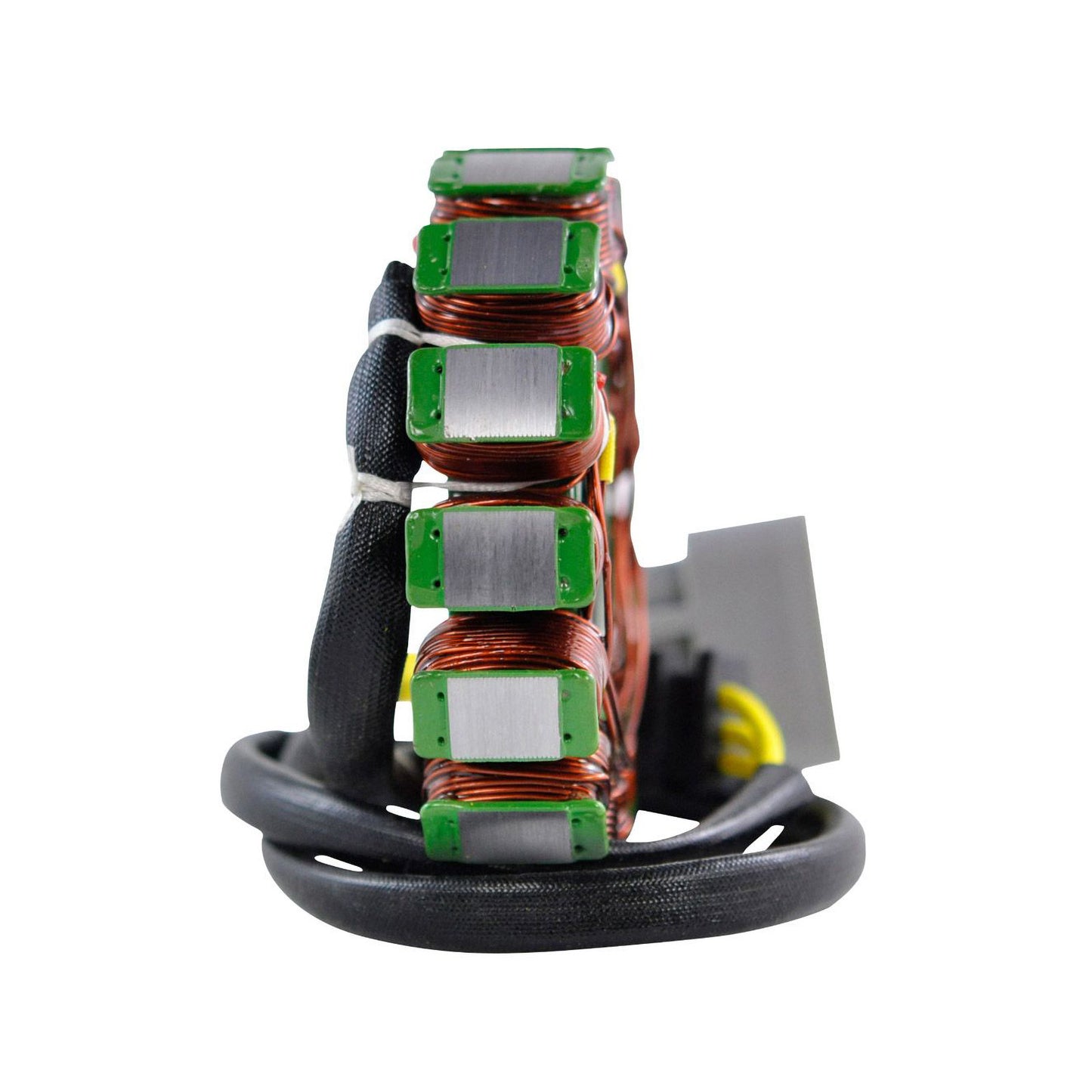

STATOR FOR KAWASAKI NINJA ZX10R 08-10 (RM01123)

Brand new stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

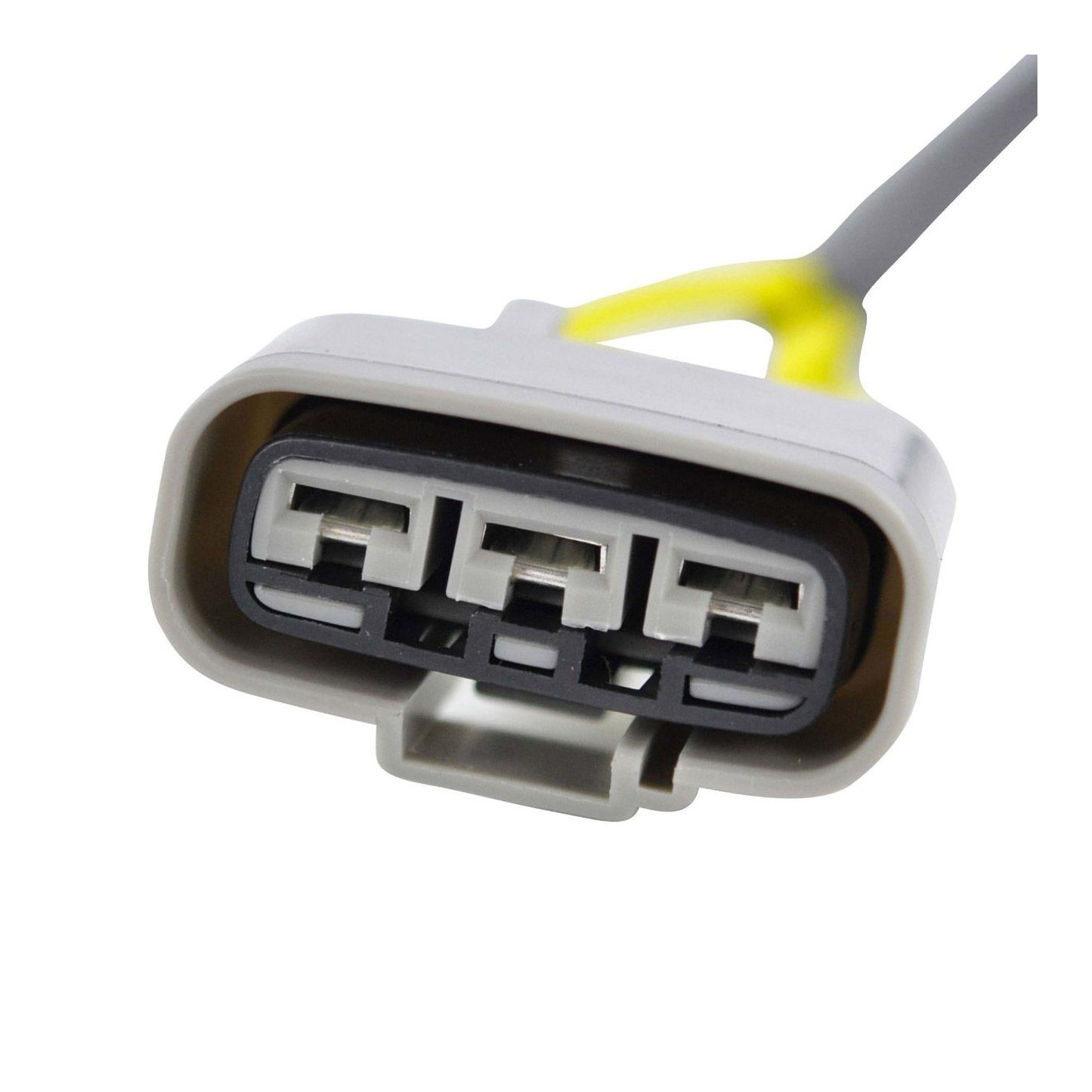

• Connector included
• Rubber grommet included
• All product shipped are tested

Dimensions:

• Interior diameter: 41mm
• Exterior diameter: 106mm
• Thickness: 14mm
• Length of wires stator to grommet: 100mm
• Length of wires grommet to plug: 400mm

Other specifications:

• Number of wires:3
• Number of plugs: 1
• Number of pins: 3

Wire to wire resistance:

• Alternator: Between each white = 0.4 ohms +/-20%

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
