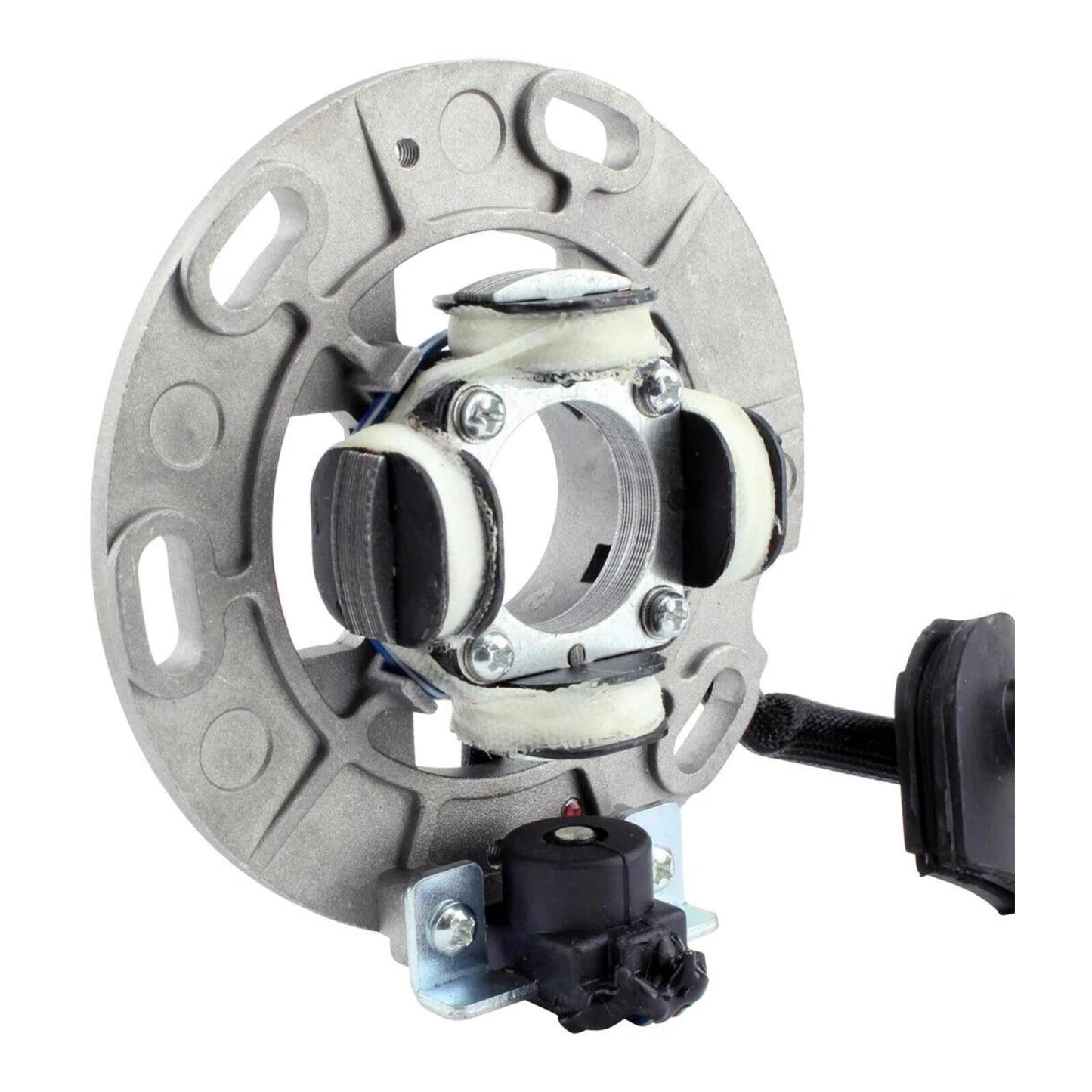

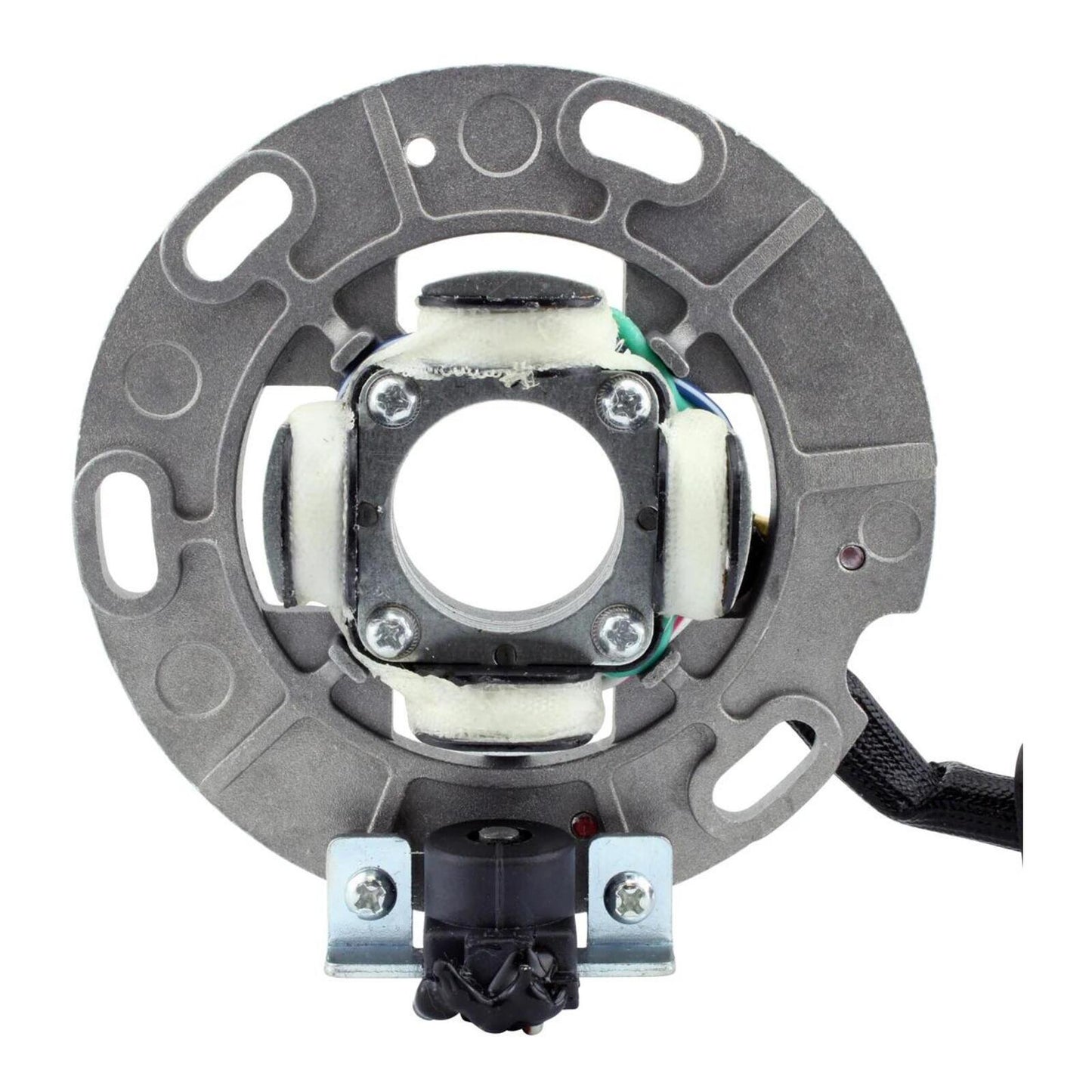

Stator for Yamaha YZ250 \'06-\'25 / YZ250X \'16-\'25

Brand new aftermarket Stator.

Features:

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• Highest grade of lamination materials.
• Highest grade of copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included.

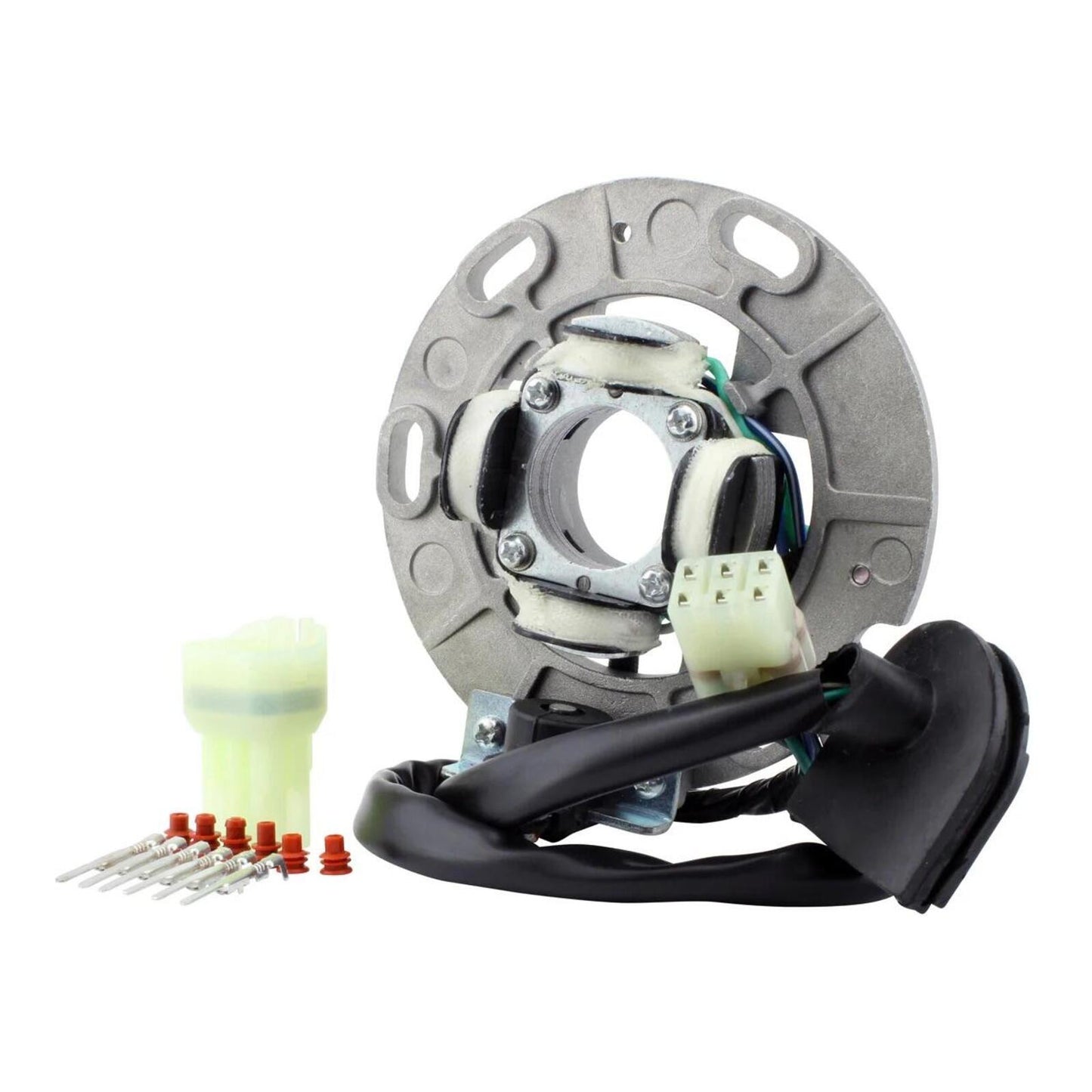

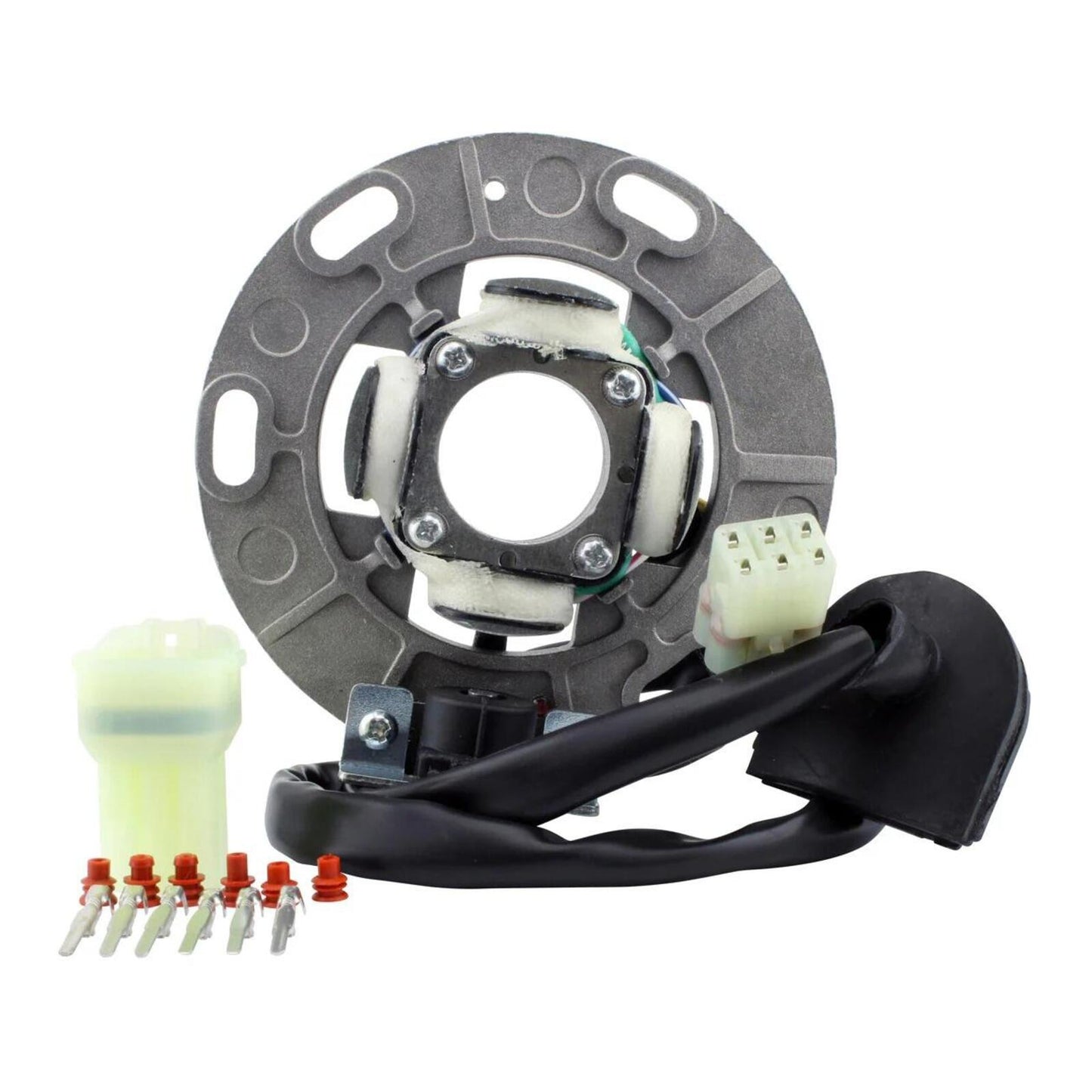

• Connector included.
• Rubber grommet included.
• All products shipped are tested.

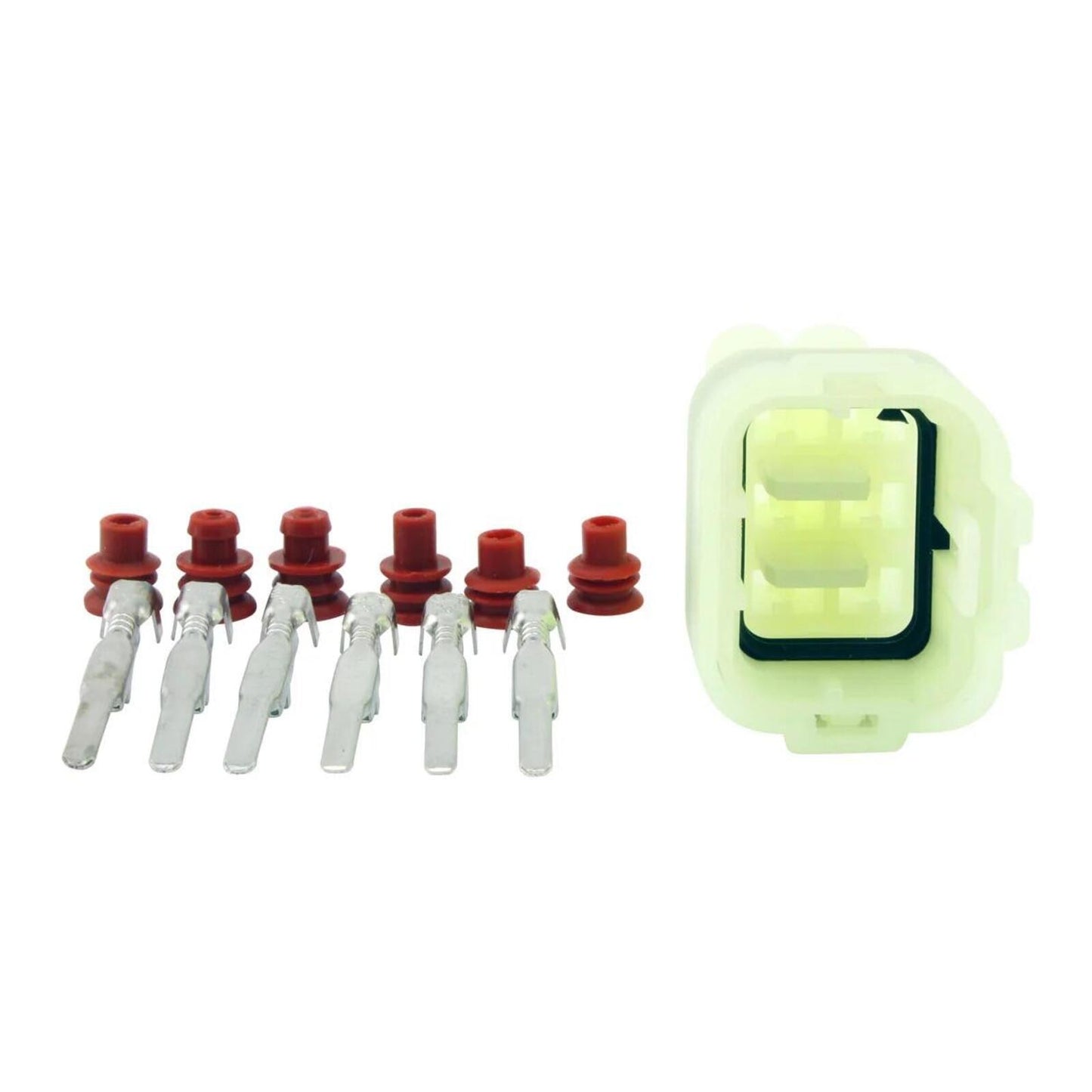

We have even included the opposite connector (main harness side), as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Specifications:

Dimensions :

• Interior diameter: 28mm
• Exterior diameter: 59.30mm
• Thickness: 33mm
• Length of wires stator to grommet: 32mm
• Length of wires grommet to plug: 320mm

Other specifications :

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6
• Number of poles: 4
• Pickup: White/Blue to White/Red = 285 ohms +-20%
• Source #1: Green/White to Green = 54 ohms +-20%
• Source #2: Black/Red to Black = 875 ohms +-20%
