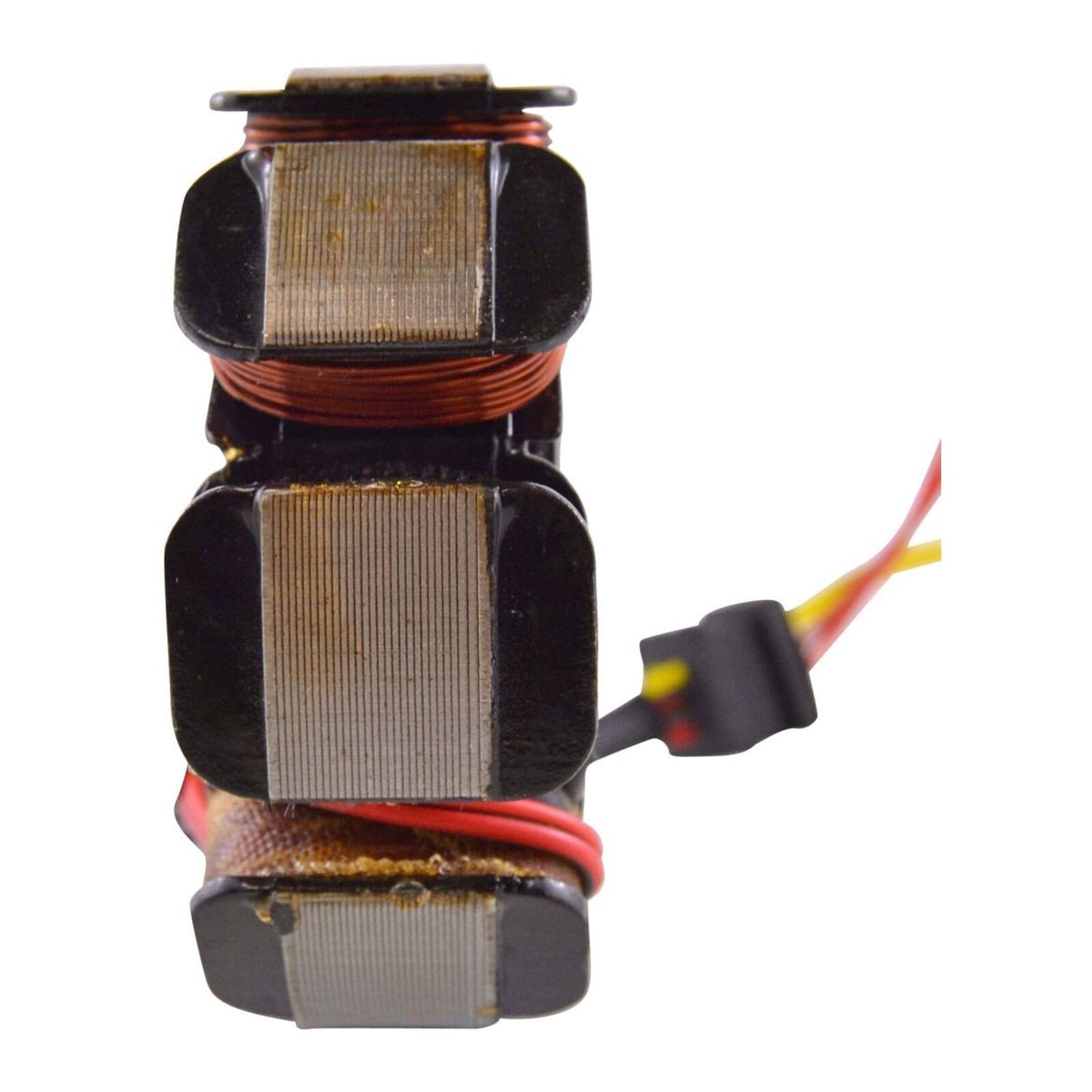

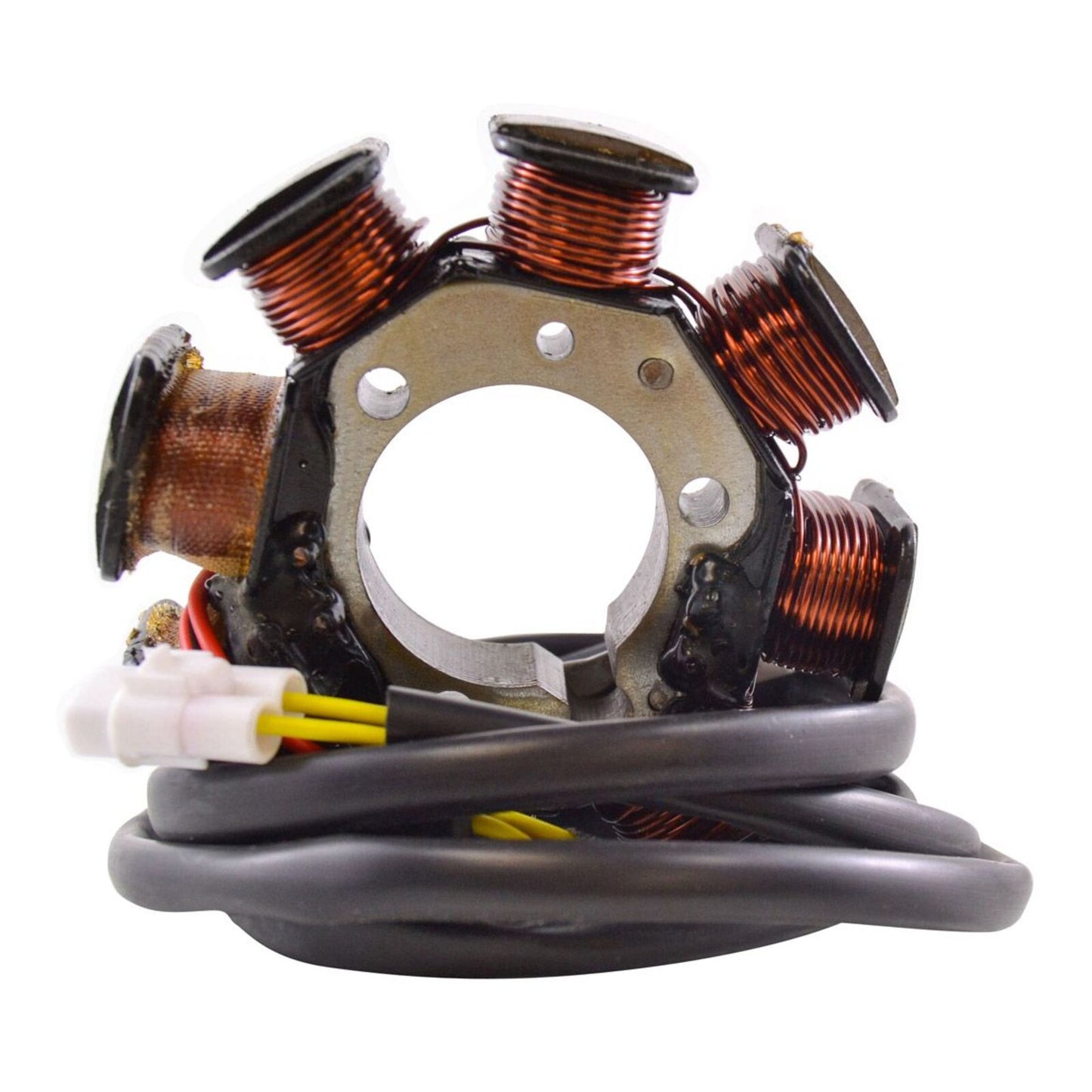

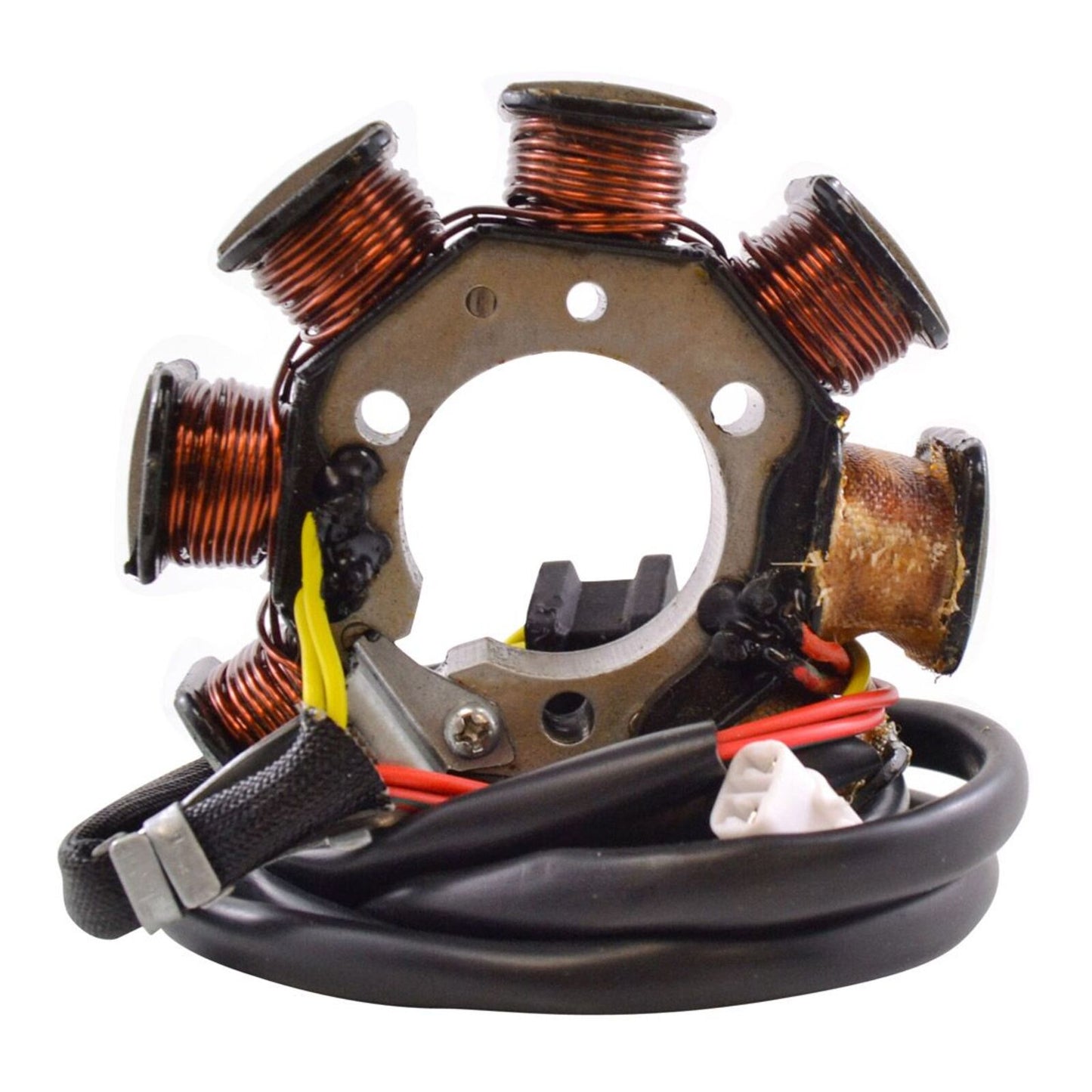

Stator Kawasaki KLF220 Bayou \'88-\'95 (RM01318)

Direct replacement for your original unit.

• Plug-and-play, direct fit for easy installation.
• Constructed with the highest grade lamination materials.
• Equipped with highest grade copper windings, resistant to 200 degrees Celsius.

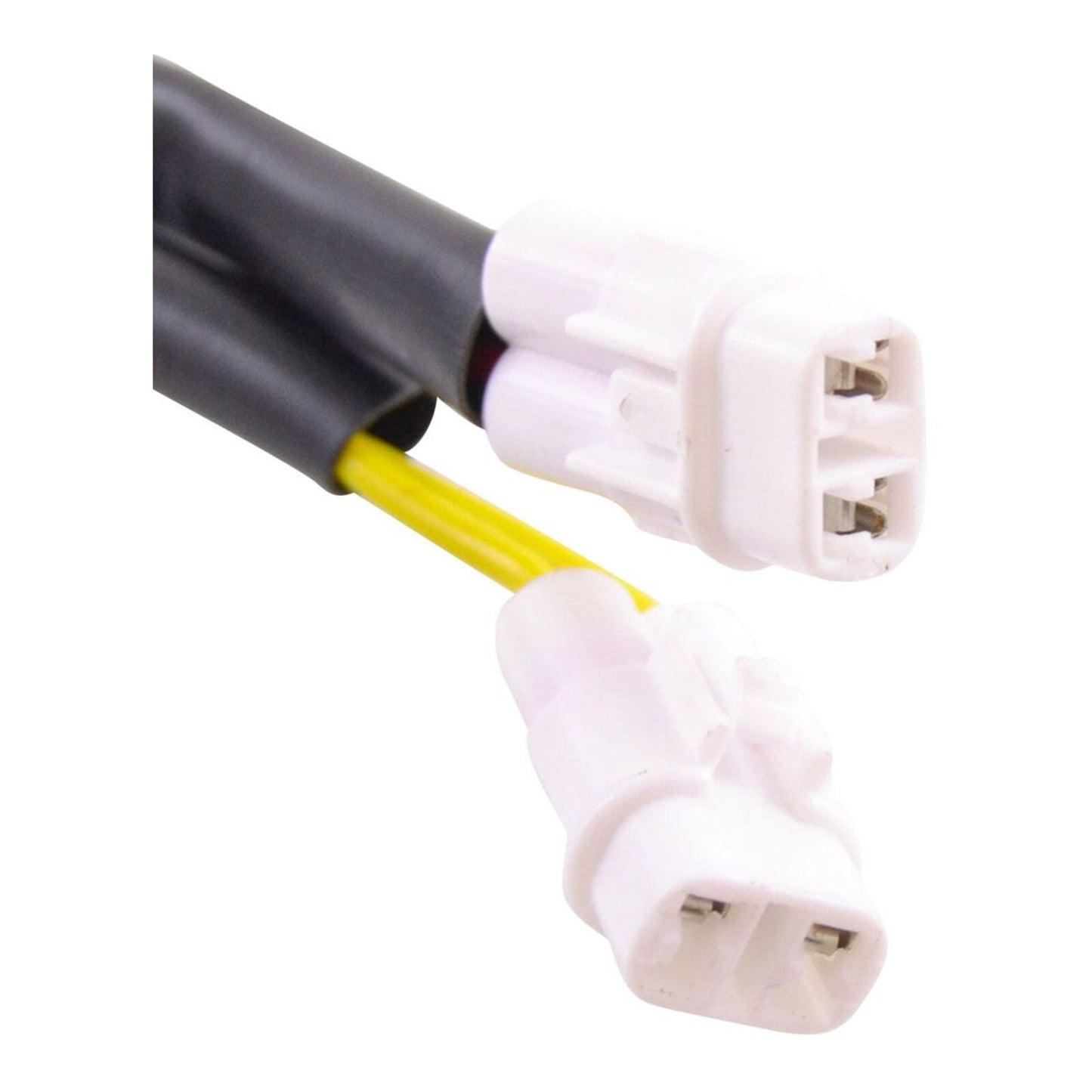

• Includes connector.
• Includes rubber grommet.
• All products are tested before shipping.

Specifications:

Dimensions:

• Interior diameter: 34mm
• Exterior diameter: 92mm
• Thickness: 18mm
• Length of wires (stator to grommet): 100mm
• Length of wires (grommet to plug): 150mm and 900mm

Other Specifications:

• Number of wires: 4
• Number of plugs: 2
• Number of pins: 4

Wire to Wire Resistance:

• Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
• Source (Red to Black/Red): 140 ohms +/- 20%
