STATOR KIT + CDI BOX + IGN COIL HON XR 600 R \'88-00\'

STATOR KIT + CDI BOX + IGN COIL HON XR 600 R \'88-00\'

$479.99
$479.99

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 business days time.

Contact us for availability

We are currently out of stock for this product.
Or split over 4 payments with Afterpay Afterpay
SHARE:
View full details

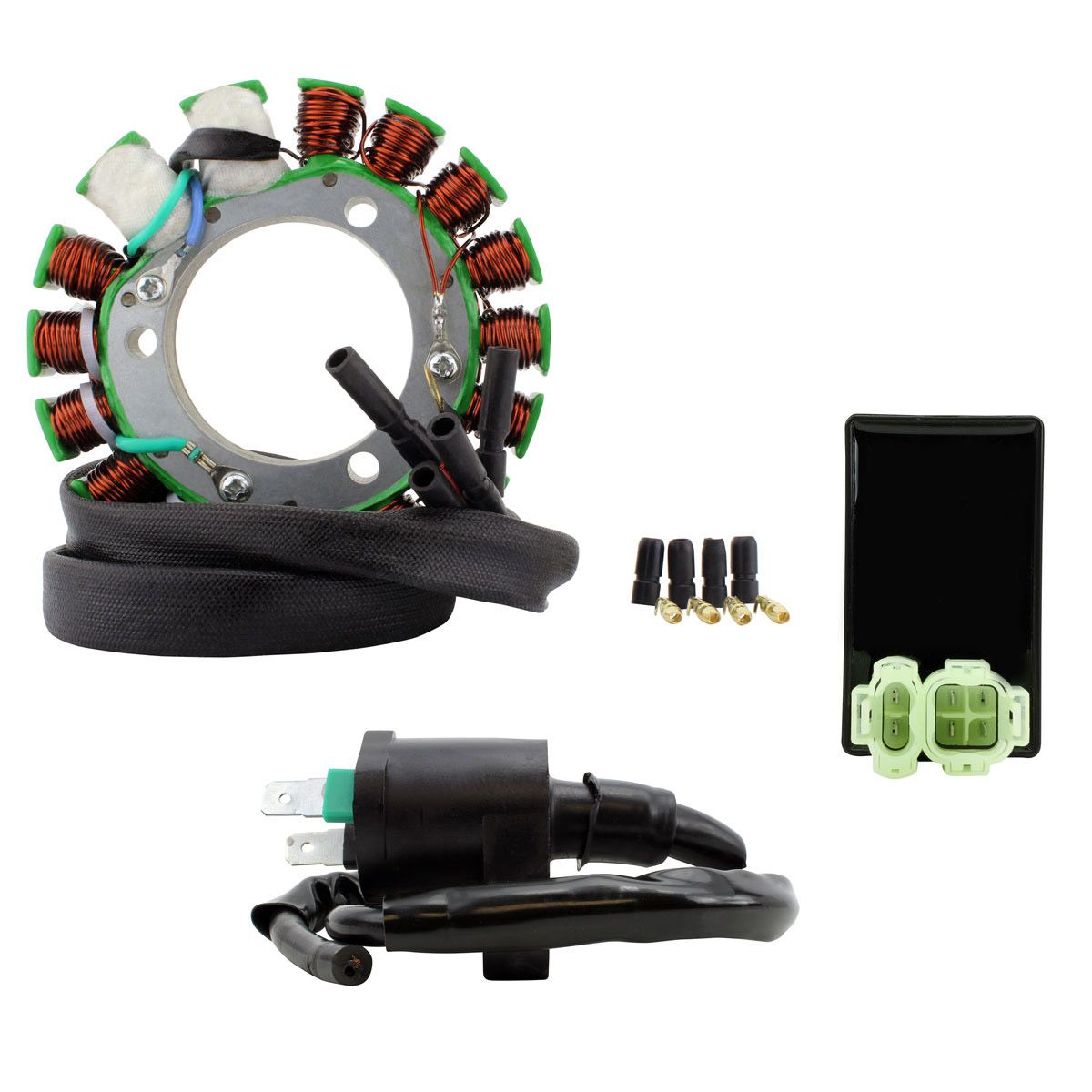

Brand new Kit High Output Stator 200W + High-Performance CDI + External Ignition Coil

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All products shipped are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

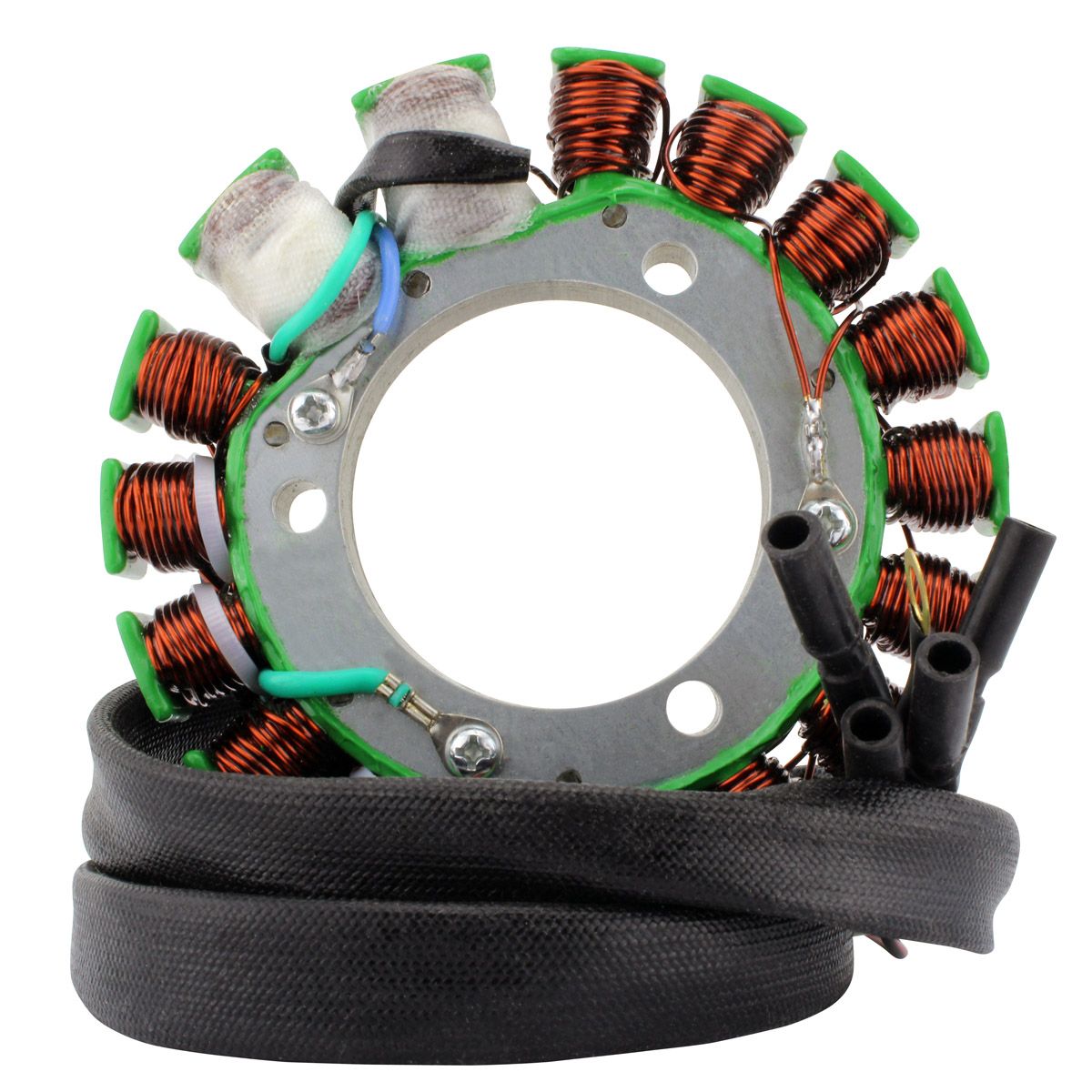

Brand new aftermarket High output Stator 200W

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • 2 x 100W
  • Connectors included
  • Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted / corroded/defective and a major cause of repetitive electrical issues.

Brand new aftermarket CDI box

  • Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
  • Higher grade of electronic components.
  • The quality exceeds the OEM equipment

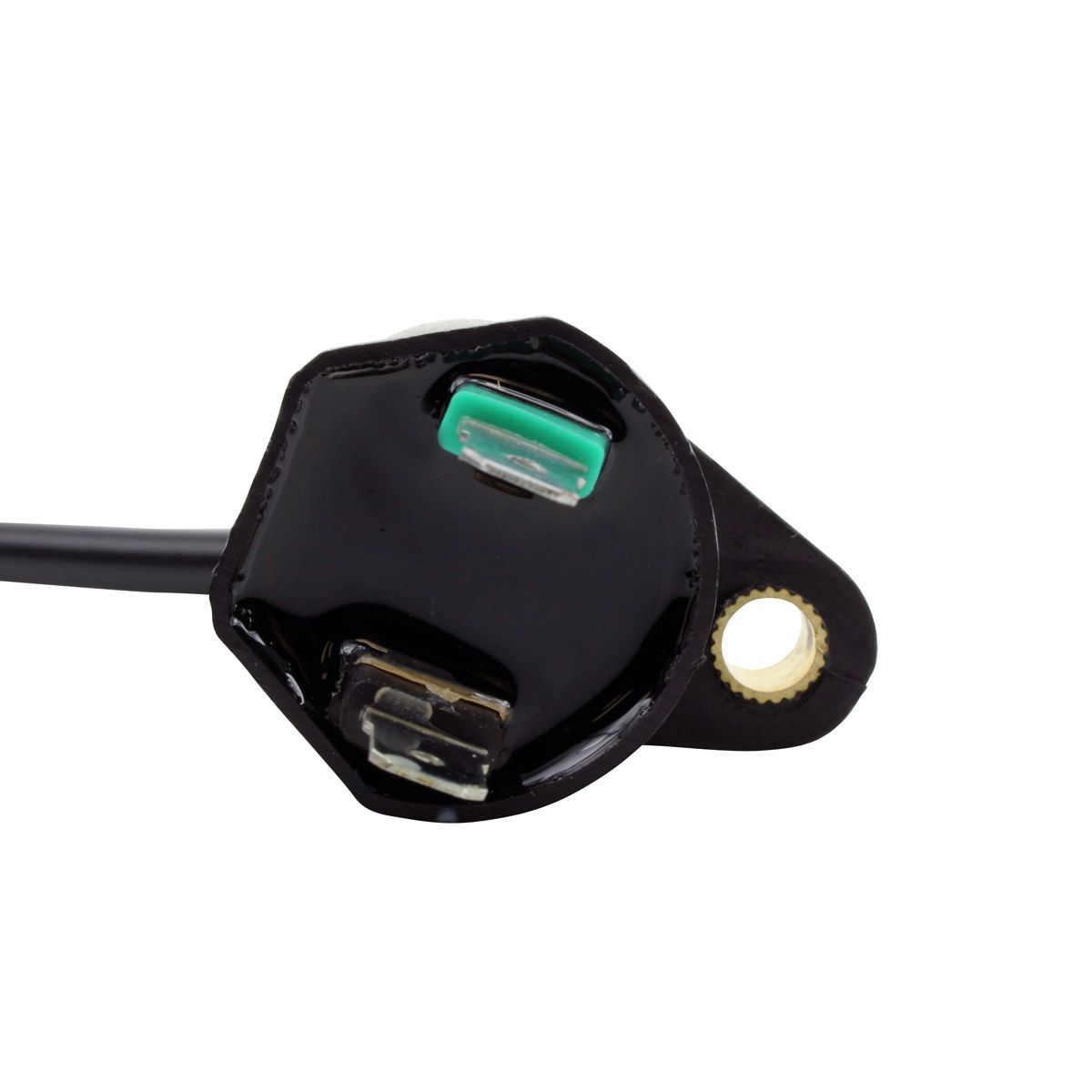

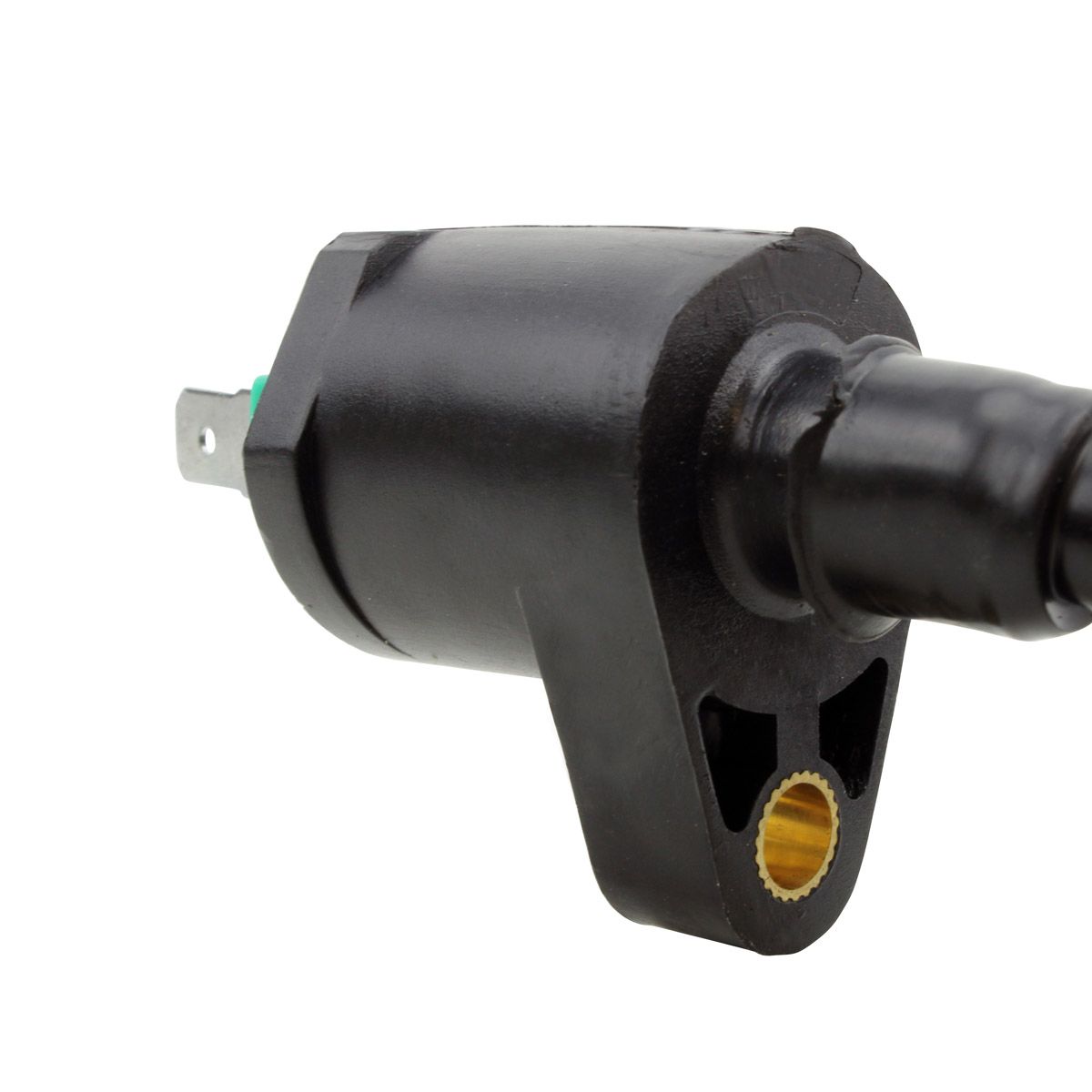

Brand new aftermarket External Ignition Coil

  • You must re-install your OEM spark plug cap(s)
  • Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug- and-play unit, direct fit, and easy to install.

High output Stator 200W

  • Dimensions:
    • Interior diameter: 54 mm
    • Exterior diameter: 115 mm
    • Thickness: 15 mm
    • Length of wires stator to grommet: 200 mm
  • Length of wires grommet to plug: 700 mm
  • Other specifications:
    • Number of wires: 5
    • Number of plugs: 5
    • Number of pins: 3
    • Number of poles: 17
    • Wire to wire resistance:
    • Alternator: White to Green = 0.4 ohms +-20%
    • Alternator: Yellow to Red = 0.4 ohms +-20%
    • Source: Black/Red to Green = 140 ohms +-20%

High- performance CDI Box

  • Dimensions:
    • Height: 22mm
    • Length: 66mm
    • Width: 42mm
  • Other specifications:
    • Number of plugs: 2
    • Number of pins: 6

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
