STATOR KIT + MOSFET REGULATOR (RMS900-106045)

STATOR KIT + MOSFET REGULATOR (RMS900-106045)

$532.54
$659.99 $532.54
Sale

In Store

Available now for delivery or store pickup, during store hours.

Warehouse

Available for delivery or store pickup during store hours in 2-5 days time.

Contact us for availability

We are currently out of stock for this product.
Or split over 4 payments with Afterpay
SHARE:
View full details

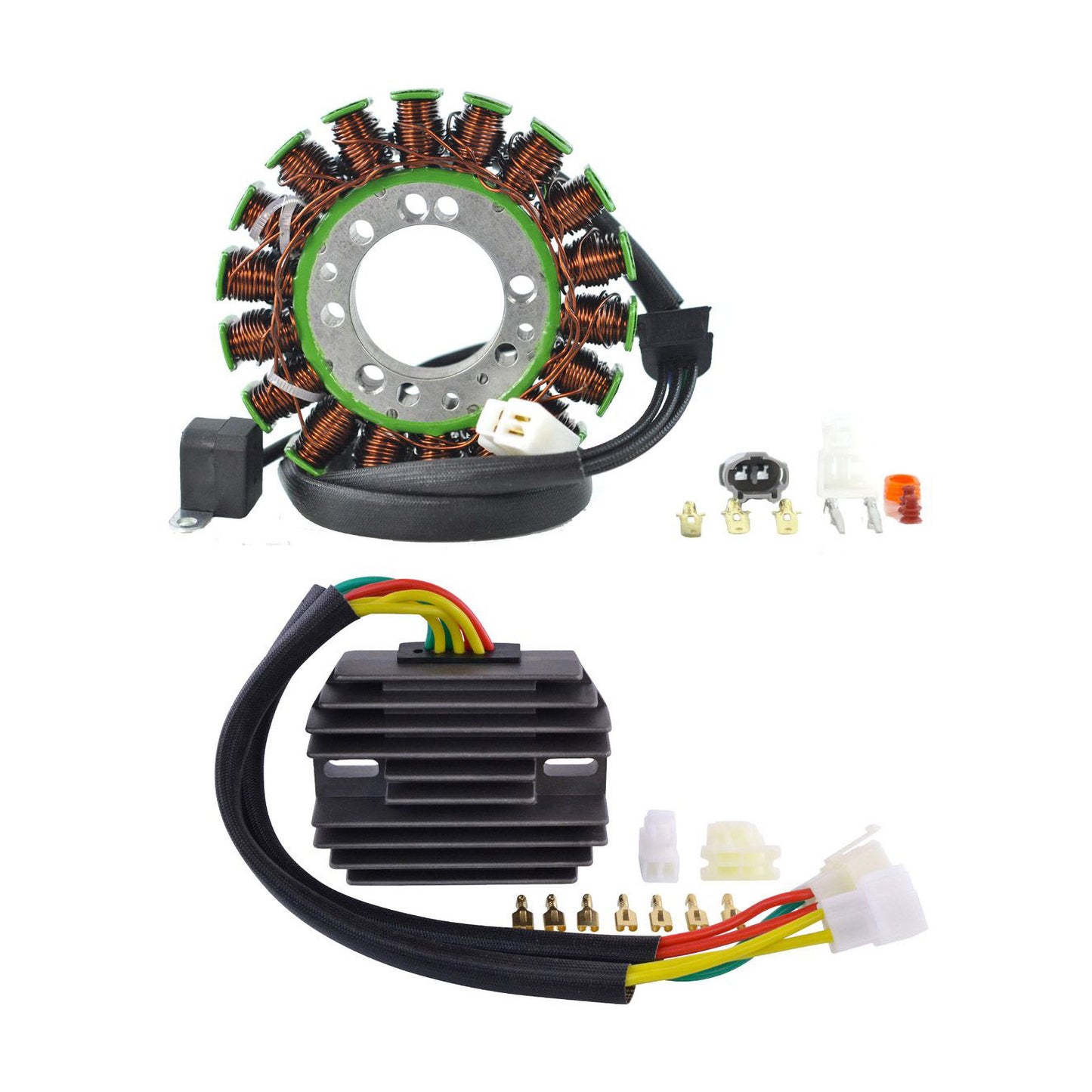

Brand new aftermarket Stator + Voltage Regulator Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

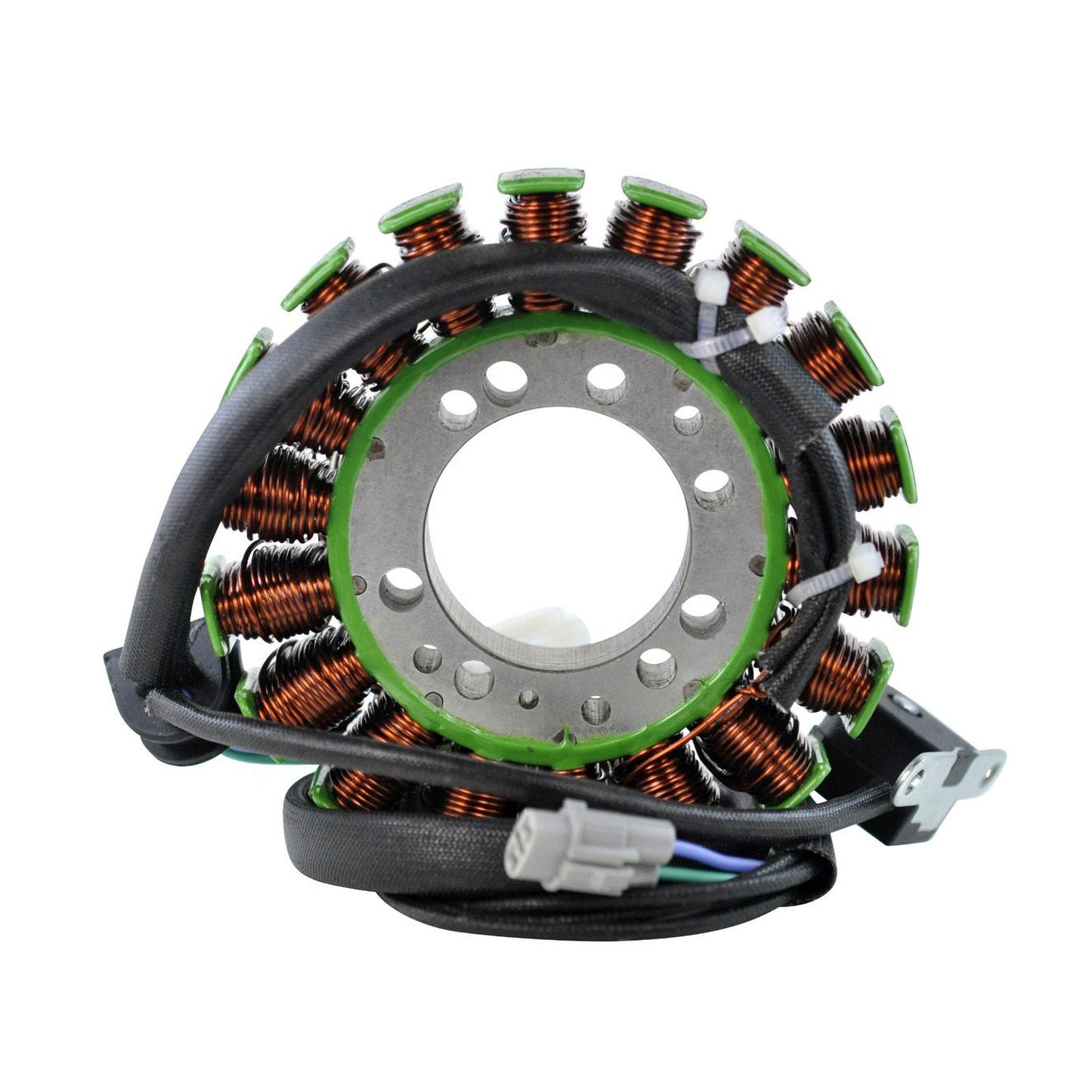

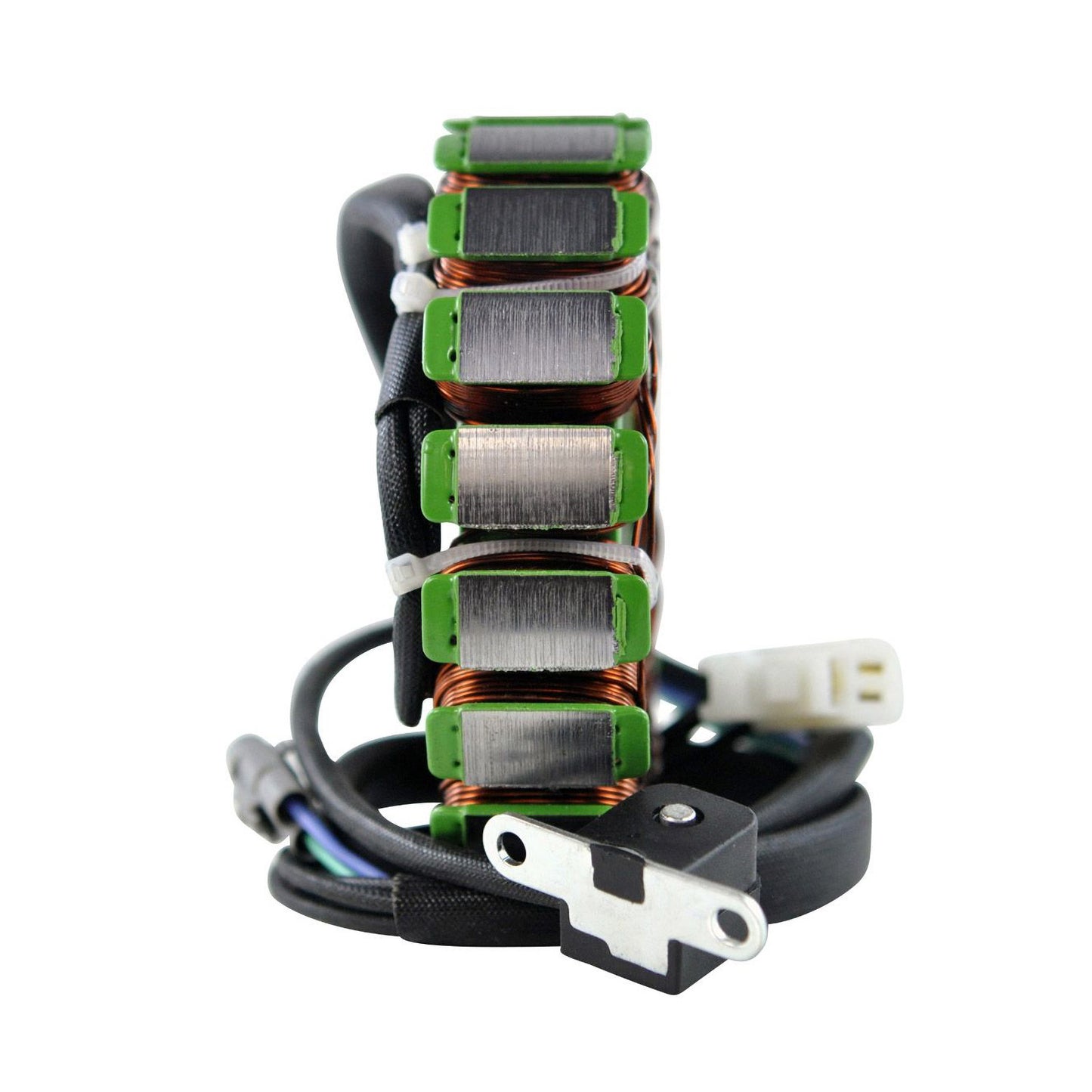

Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included

Voltage Regulator Rectifier

  • No assembly required
  • Higher grade of electric components
  • The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and are a major cause of repetitive electrical issues.

Stator

Dimensions:

  • Interior diameter: 42mm
  • Exterior diameter: 115mm
  • Thickness: 22mm
  • Length of wires stator to grommet: 120mm
  • Length of wires grommet to plug: 530mm
  • Length of pickup coil\'s wire to grommet: 150mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18

Wire to wire resistance:

  • Alternator 3p: Black between each Black = 1 ohm +-20%
  • Pickup: Green to Blue = 200 ohms +-20%
  • Alternator to ground = O.L

Voltage Regulator

Dimensions:

  • Width: 82mm
  • Length: 94mm
  • Height: 28mm
  • Wires length: 183mm
  • Fixation holes centre to centre: 73mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 7
  • Number of wires: 7
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
