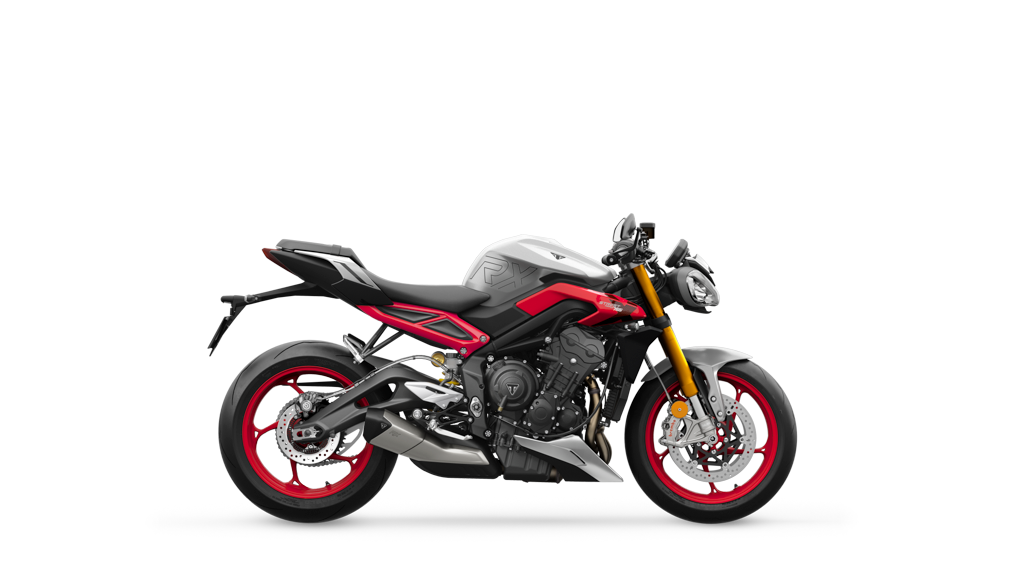

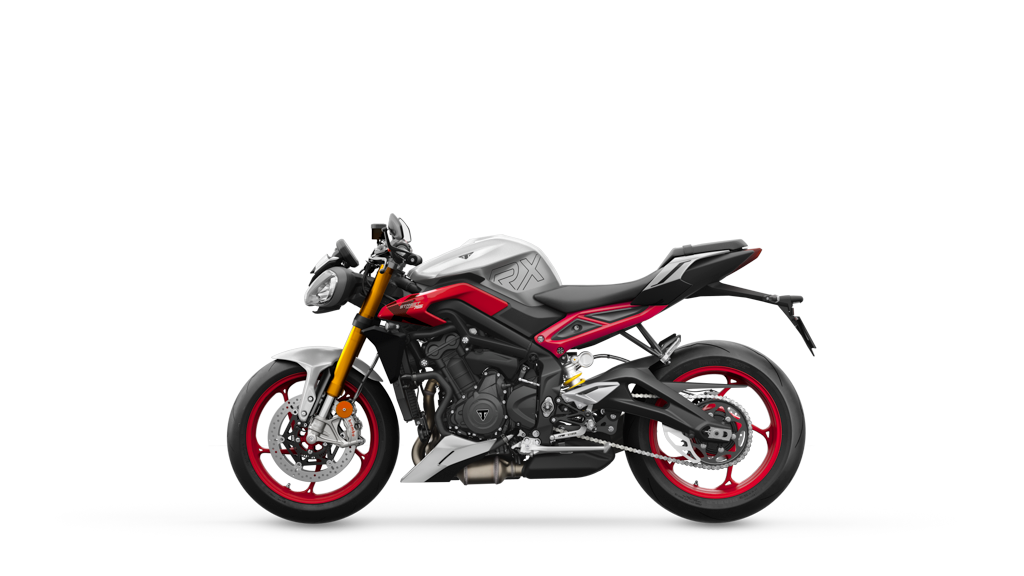

Street Triple 765 RX
Street Triple 765 RX
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
Fill out the form below and one of our friendly sales team will be in touch.
Pure race-bred perfection upgraded
CATEGORY LEADING POWER
The same 765 cc Triple from the Moto2™ World Championship, delivering exhilarating usable torque and responsive acceleration thanks to the optimised engine tune, and featuring Triumph Shift Assist for fast and precise clutchless gear changes.
ULTIMATE AGILITY AND PRECISION
Fully adjustable Öhlins NIX Upside Down Forks & STX40 RSU provide the next step in track precision paired with clip-on handlebars for focused track ready ergonomics.
STREET TRIPLE ATTITUDE

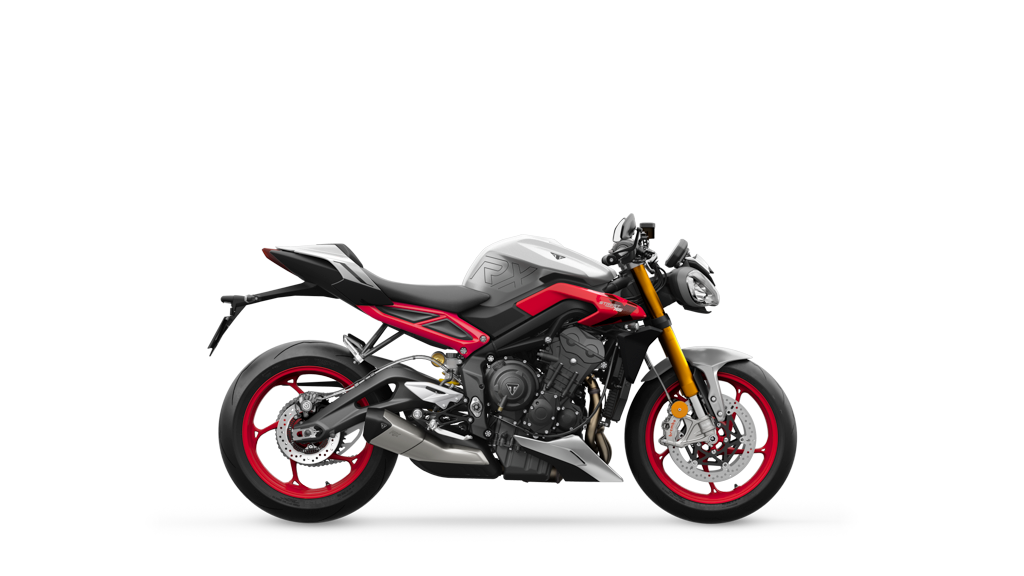

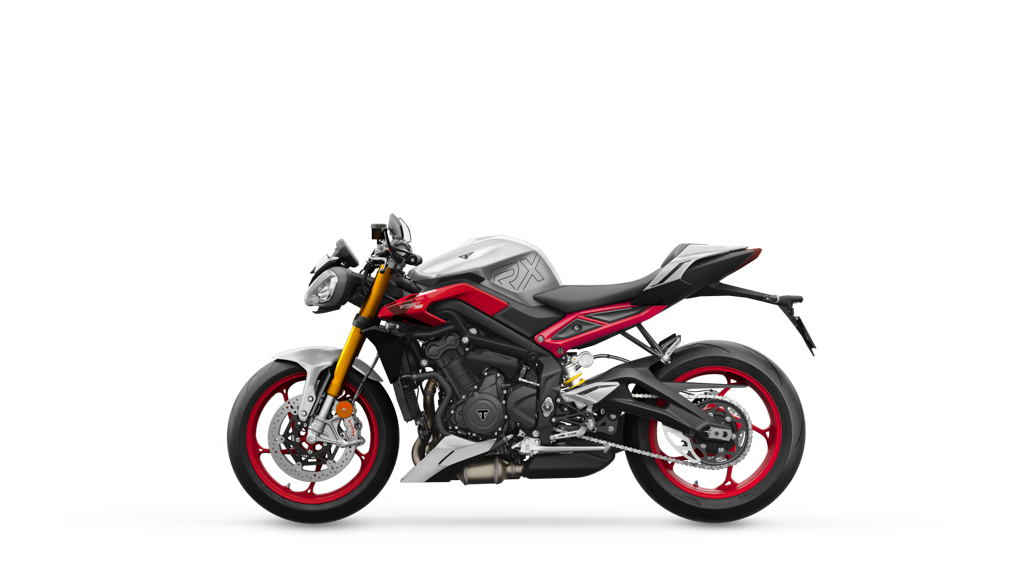

A striking RX livery with a clean Matt Aluminium base with striking Diablo Red accents and bold RX branding. A scheme that pays homage to the original Street Triple 765 RX.
PERFORMANCE TECHNOLOGY
Track focused technology throughout ensures maximum performance on every ride. From Optimised Cornering ABS and traction control, five unique riding modes including Track mode and Triumph Shift Assist.
ALL IN THE DETAIL

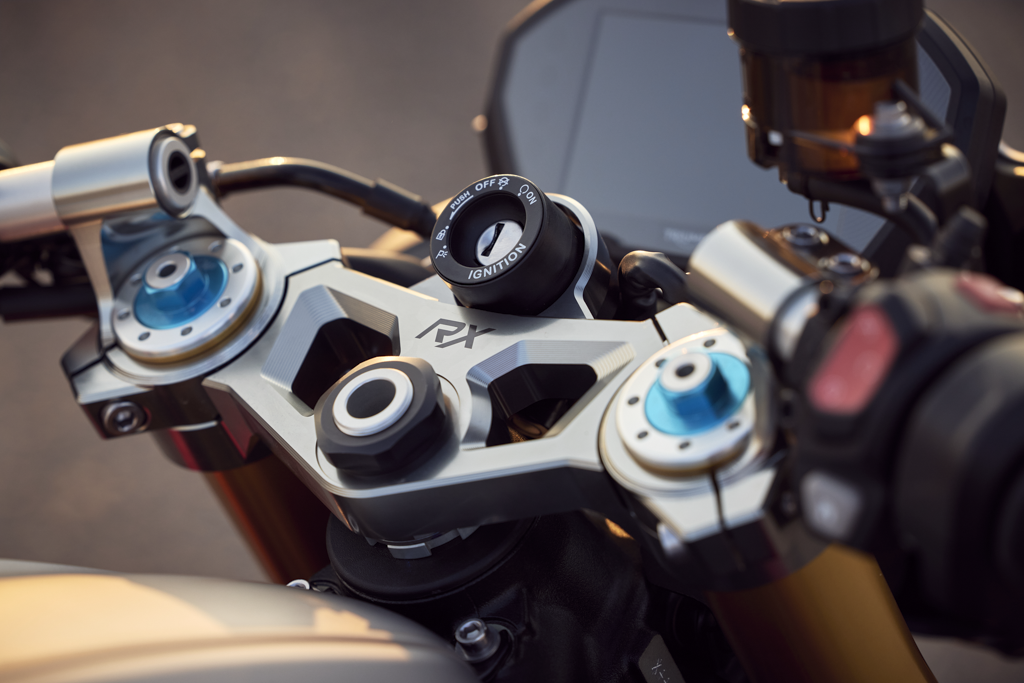

A billet-machined top yoke with the RX logo laser-etched on top. The beauty is in the details.
TECHNICAL SPECIFICATION
| TypeLiquid-cooled, inline 3-cylinder, 12 valve, DOHC |
| Capacity765 cc |
| Bore78.0 mm |
| Stroke53.4 mm |
| Compression13.25:1 |
| Max Power EC130 PS / 128.2 bhp (95.6 kW) @ 12,000 rpm |
| Max Torque EC80 Nm @ 9,500 rpm |
| SystemMultipoint sequential electronic fuel injection with electronic throttle control |
| ExhaustStainless steel 3 into 1 header system with low single sided stainless steel silencer |
| Final DriveX-ring chain |
| ClutchWet multi-plate slip and assist |
| Gearbox6 speed |
| FrameAluminium beam twin-spar frame with 2 piece high pressure die cast rear subframe |
| SwingarmTwin-sided cast aluminium alloy |
| Front WheelCast aluminium alloy 5 spoke 17 x 3.5 in |
| Rear WheelCast aluminium alloy 5 spoke 17 x 5.5 in |
| Front Tyre120/70R17 |
| Rear Tyre180/55R17 |
| Front SuspensionOhlins NIX30 adjustable compression and rebound damping and preload adjustment, 115 mm wheel travel |
| Rear SuspensionOhlins STX40 piggyback reservoir monoshock adjustable compression and rebound damping and preload adjustment, 131.2 mm wheel travel |
| Front BrakesTwin 310 mm floating discs with Brembo Stylema 4-piston radial monobloc calipers OCABS and Brembo MCS radial master cylinder |
| Rear BrakesSingle 220 mm disc with Brembo single piston caliper OCABS |
| Instrument Display and Functions5 inch TFT full colour display |
| Service6000 miles (10000 km) or 12 months whichever comes first |
| Width Handlebars765 mm |
| Height Without Mirror1051 mm |
| Seat Height839 mm |
| Wheelbase1397 mm |
| Rake23 degrees |
| Trail95.3 mm |
| Tank Capacity15 L |
| Wet Weight188 kg |
