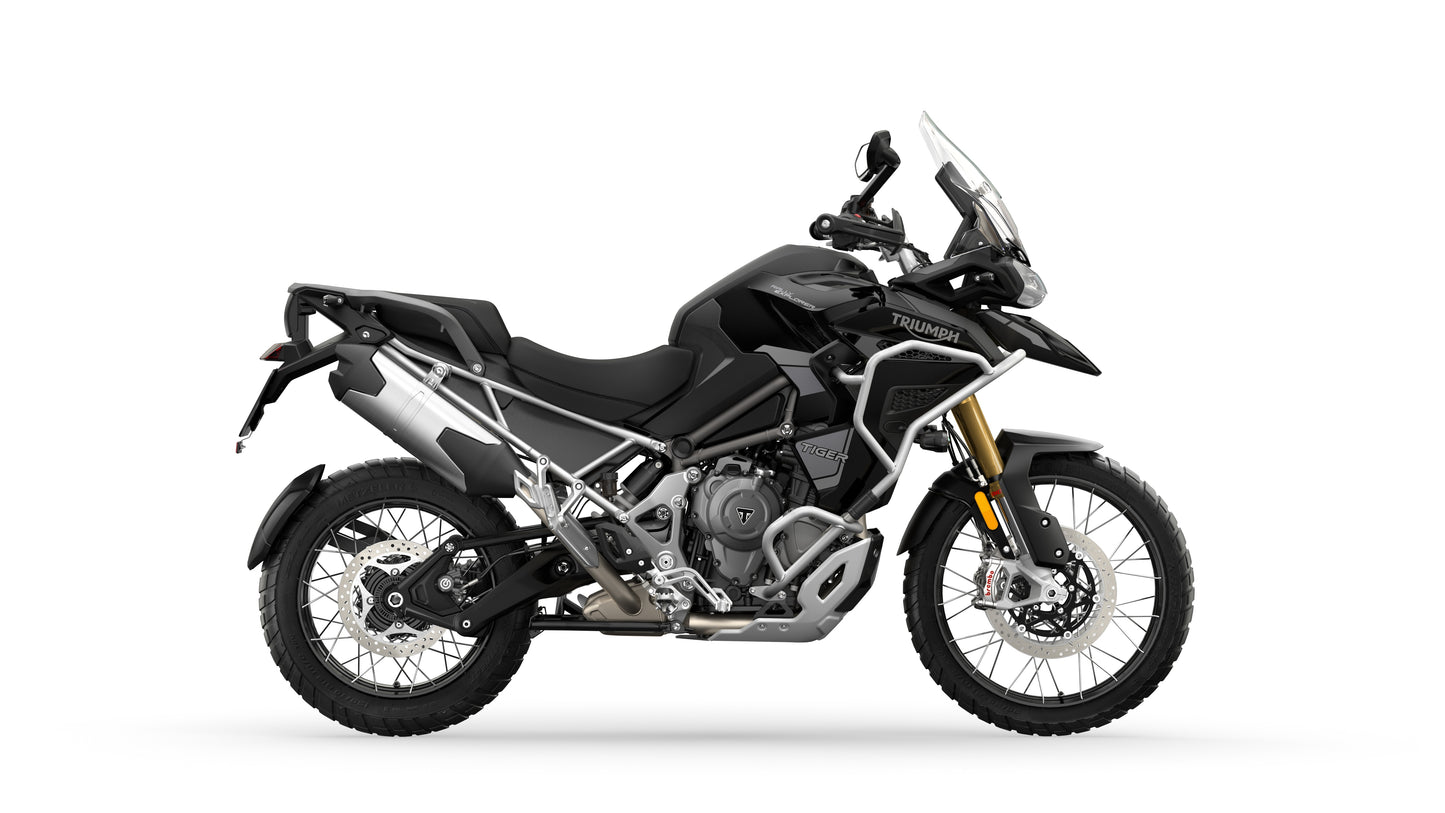

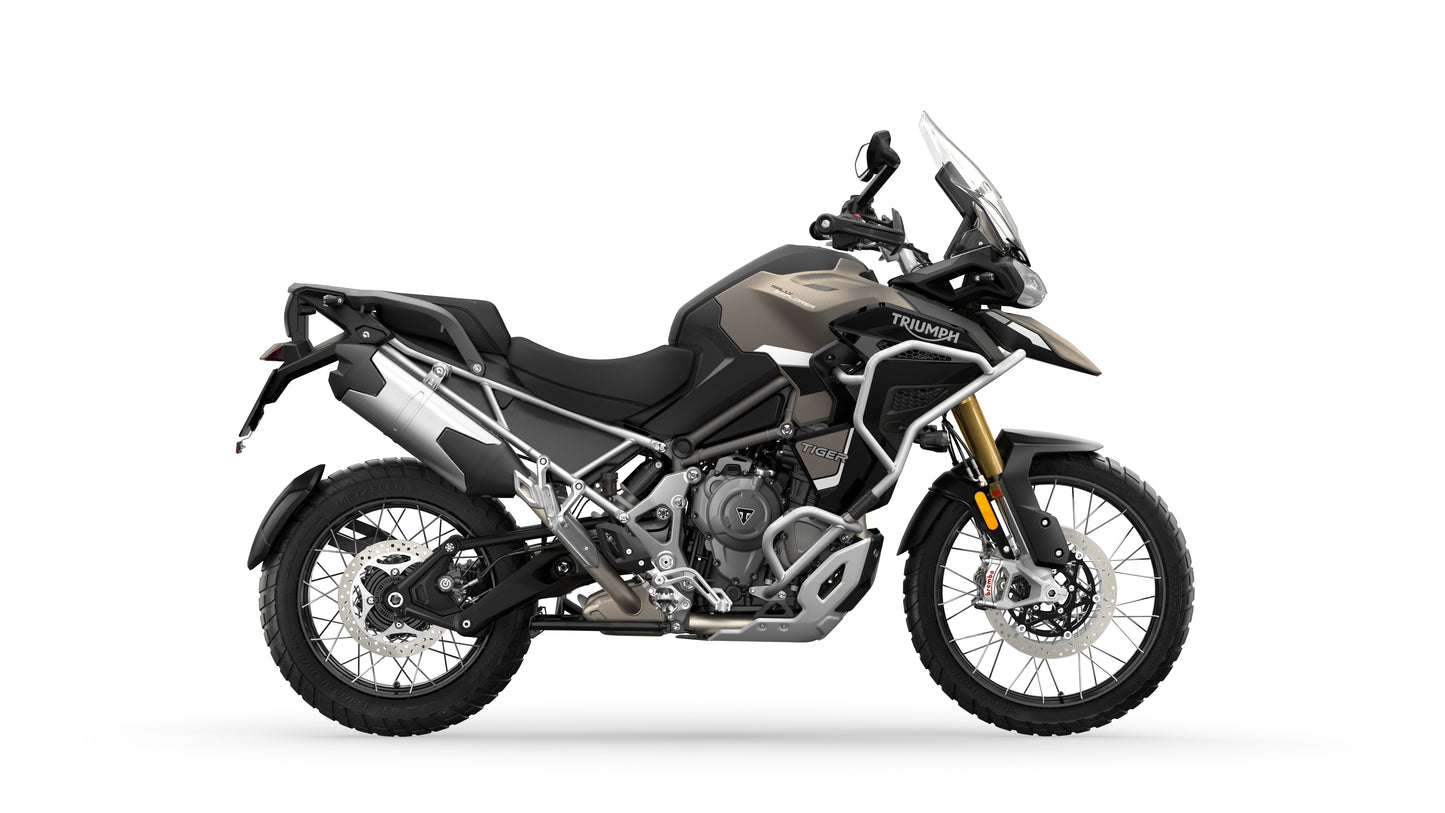

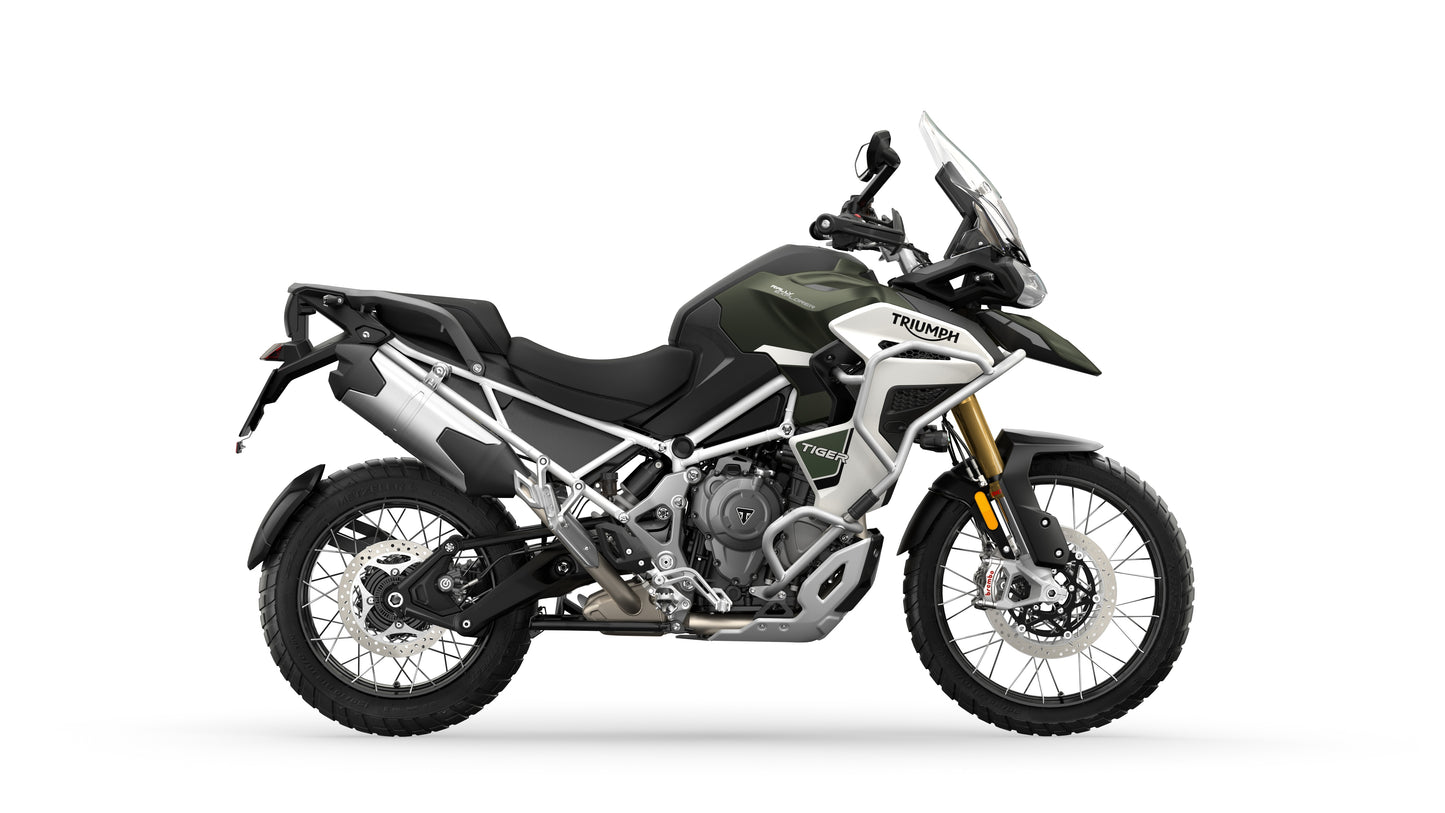

TIGER 1200 RALLY EXPLORER
TIGER 1200 RALLY EXPLORER
*Advertised 'Ride Away Price' including dealer fees, set-up and (if applicable) 12 months registration.
separator
With world-beating comfort and all-road capability, the top-of-the-range Rally Explorer is the ultimate large-capacity adventure motorcycle. Hit those hot summer savings today.
MODEL
YEAR
TECHNICAL SPECIFICATION
| TypeLiquid-cooled, 12 valve, DOHC, inline 3-cylinder |
| Capacity1160 cc |
| Bore90.0 mm |
| Stroke60.7 mm |
| Compression13.2:1 |
| Max Power EC150PS / 148bhp (110.4kW) @ 9,000rpm (100PS rain mode) |
| Max Torque EC130 Nm @ 7,000 rpm |
| SystemMultipoint sequential electronic fuel injection with electronic throttle control |
| ExhaustStainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer |
| Final DriveShaft drive |
| ClutchHydraulic, wet, multi-plate, slip and assist |
| Gearbox6 speed |
| FrameTubular steel frame, with forged aluminium outriggers. Fabricated, bolt-on aluminium rear subframe. |
| SwingarmTwin sided “Tri-Link” aluminium swingarm with twin aluminium torque arms. |
| Front WheelSpoked (Tubeless). 21 x 2.15in. |
| Rear WheelSpoked (Tubeless). 18 x 4.25in. |
| Front TyreMetzeler Karoo Street, 90/90-21 (M/C 54V TL) |
| Rear TyreMetzeler Karoo Street, 150/70R18 (M/C 70V TL) |
| Front SuspensionShowa 49mm, semi-active damping USD forks. 220mm travel. |
| Rear Suspension220mm wheel travel Showa semi-active damping monoshock, with automatic electronic preload adjustment and New Active Preload Reduction feature. Depending on the combined weight of rider, pillion and luggage, this feature could lower the riding height by up to 20mm when the motorcycle comes to a standstill, offering greater ease and confidence. |
| Front BrakesBrembo M4.30 Stylema monoblock radial calipers, OC-ABS, twin 320mm floating discs. Magura HC1 span adjustable radial master cylinder with separate reservoir. |
| Rear BrakesBrembo single piston caliper, OC-ABS, single 282mm disc. Rear master cylinder with remote reservoir. |
| Instrument Display and FunctionsFull-colour 7” TFT instrument pack with My Triumph Connectivity System |
| Fuel Consumption5.1 l/100km |
| CO2 Figures119 g/km EURO 5 Regulation (EU) No. 134/2014 Annex VIII |
| Service Interval10,000 miles/16,000 km or 12 months, whichever comes first |
| Width HandlebarsHandlebars 849mm, handguards 982 mm |
| Height Without MirrorLow screen 1490mm, high screen 1547 mm |
| Seat HeightAdjustable 875/895 mm |
| Wheelbase1560 mm |
| Rake23.7 º |
| Trail112 mm |
| Tank Capacity30 L |
| Wet Weight262kg (90% fuel – mass in running order) kg |
