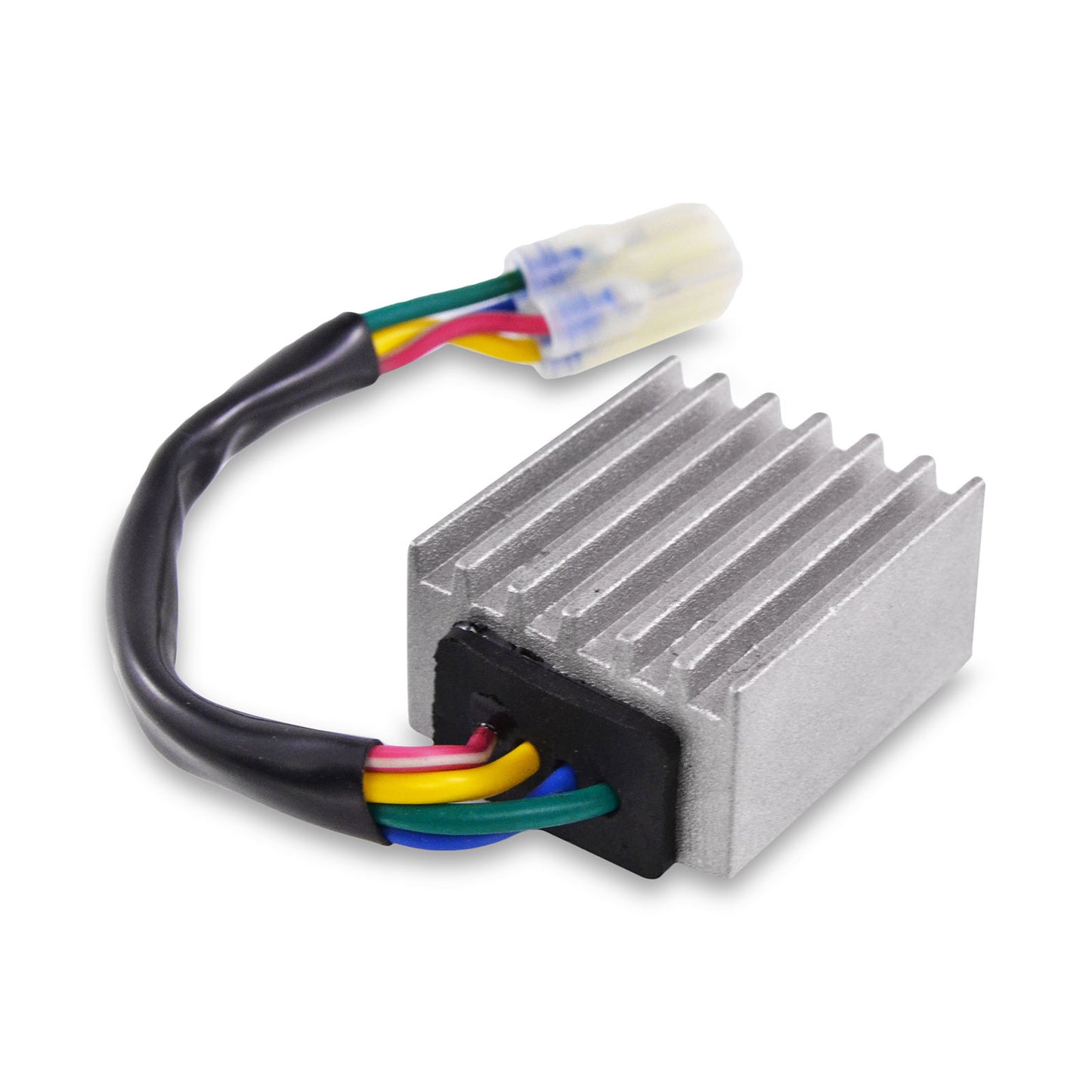

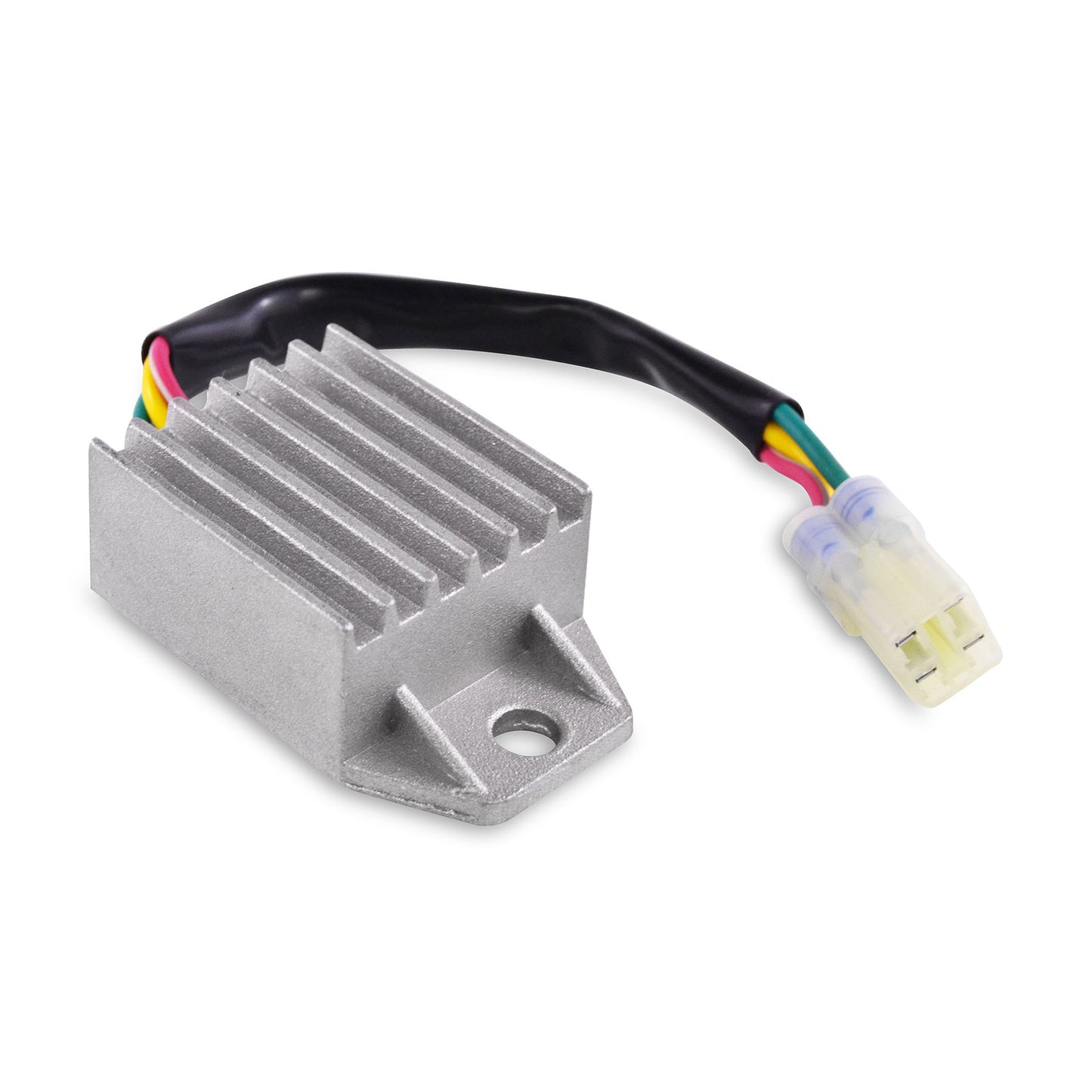

Voltage Regulator - Honda CRF250X \'04-\'17 (RMS020-103312)

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

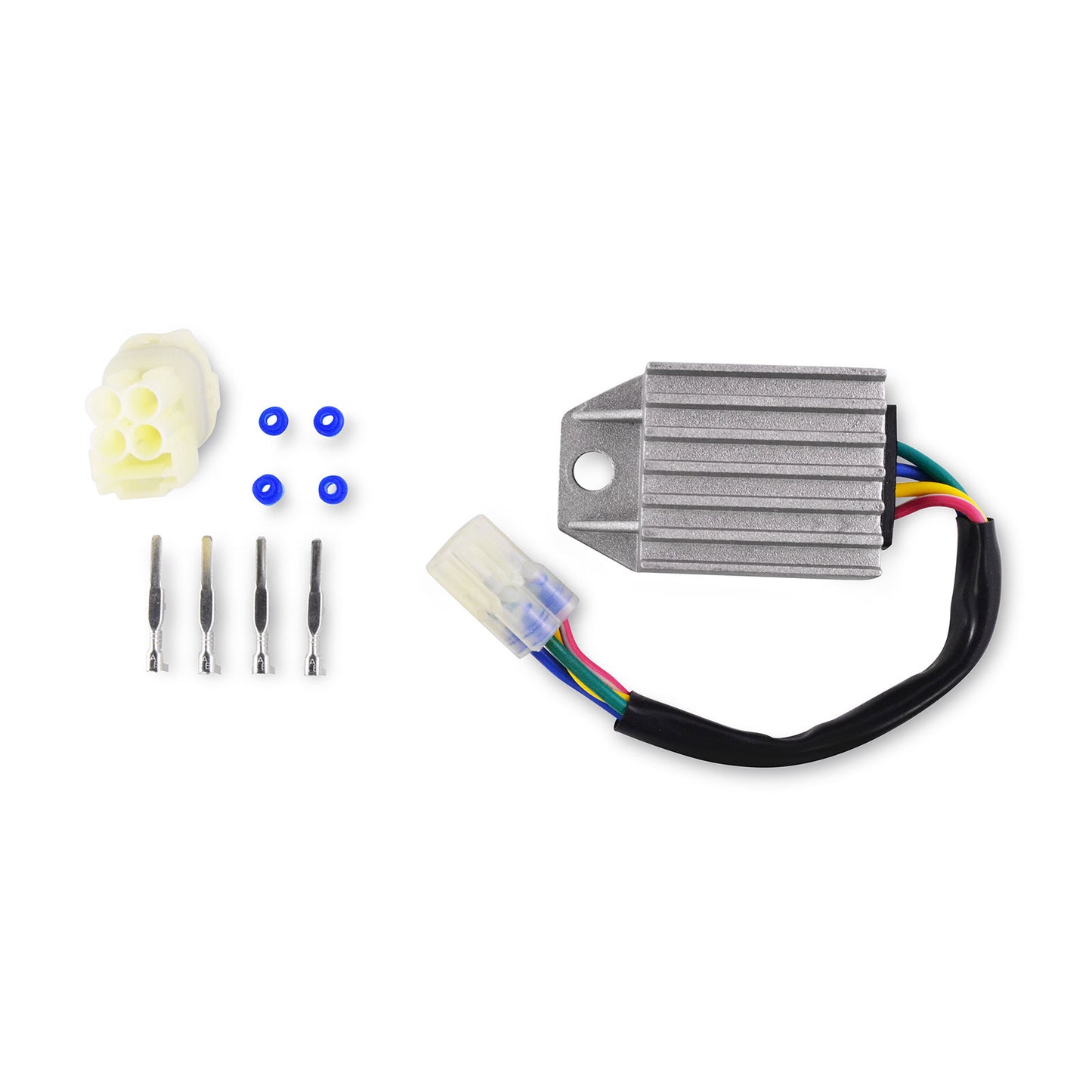

RMSTATOR have included the opposite connector (main harness side) as they know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

Dimensions:

• Width: 38 mm
• Length: 57 mm
• Height: 19 mm
• Wires length: 122 mm

Other specifications:

• Number of plugs: 1
• Number of pins: 4
• Number of wires: 4
• Minimum Charging Voltage: 14.5V +- 0.5V
• Maximum Charging Current: 50A/500W
• Open Circuit Voltage: 15V
• Operation Temperature: -20° to 85°

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.

*The product images shown are for illustration purposes only and may not be an exact representations of the product. Cullys Yamaha reserve the right to change product images and specifications at anytime without notice. Additional products may be displayed within image to illustrate the product offered for sale
